ON Semiconductor NLAS7222AMTR2G Product Overview

The NLAS7222AMTR2G from ON Semiconductor is a high-performance, dual single-pole double-throw (SPDT) analog switch designed to deliver cutting-edge switching solutions for a wide range of applications. This component offers a compact and efficient way to route analog and digital signals in your electronic designs.

Key Features

• Low On-Resistance: The device features an ultra-low on-resistance of typically 0.5 ohms, ensuring minimal signal loss and power dissipation during operation.
• Wide Voltage Range: It operates over a broad voltage range from 1.65V to 4.3V, making it suitable for both battery-powered and line-powered applications.
• High Current Handling: The NLAS7222AMTR2G can handle continuous current up to 300 mA, providing robust performance for signal routing.
• Fast Switching Speed: With a break-before-make switching mechanism, it offers fast switching times that are essential for high-speed signal processing.
• ESD Protection: The device includes built-in electrostatic discharge (ESD) protection circuitry, safeguarding it against static electricity and surges up to ±2 kV Human Body Model (HBM).

Applications

The versatility of the NLAS7222AMTR2G allows it to be used in a variety of applications, including but not limited to:

• Cellular phones
• PDAs and portable devices
• Data acquisition systems
• Communication systems
• Audio and video signal routing

Quality and Reliability

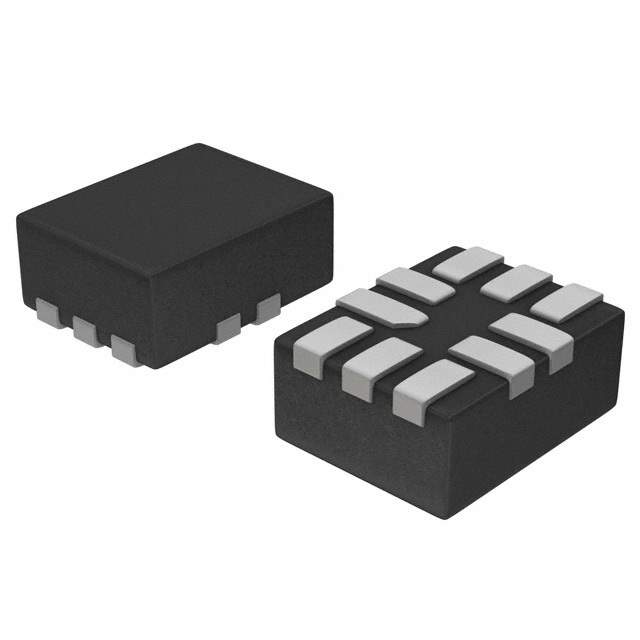

ON Semiconductor is committed to providing high-quality products. The NLAS7222AMTR2G is manufactured with the company's advanced sub-micron silicon process, ensuring high reliability and performance consistency. The device is available in a space-saving micro-miniature, thin dual flat no-lead (TDFN) package, which is RoHS compliant and suitable for automated assembly processes.

Ordering and Packaging

The NLAS7222AMTR2G is supplied in a 12-pin TDFN package and is provided in tape and reel packaging for ease of handling and use in high volume production environments. Its ordering code is NLAS7222AMTR2G, and it is shipped in quantities of 3000 units per reel.
