ON Semiconductor NLU1G04CMUTCG - Single Inverter Gate

The ON Semiconductor NLU1G04CMUTCG is a high-performance, single inverter gate designed to meet the needs of a wide range of applications. This device is a part of ON Semiconductor's advanced CMOS technology which offers low power consumption and high-speed operation. It is ideal for use in various types of electronic circuits, including logic inversion, pulse shaping, and oscillator circuits.

Key Features:

• Logic Type: CMOS
• Logic Level: Ultra-High-Speed
• Number of Circuits: Single
• Input Type: Standard
• Output Type: Open Drain
• Supply Voltage Range: 1.65V to 5.5V
• Operating Temperature: -55°C to +125°C
• Mounting Type: Surface Mount
• Package / Case: 6-XFDFN Exposed Pad

The NLU1G04CMUTCG's low power consumption makes it particularly well-suited for battery-operated and portable devices, where power efficiency is critical. Its wide operating voltage range of 1.65V to 5.5V allows for flexibility in design and compatibility with various logic levels, making it a versatile choice for designers.

With its ultra-high-speed performance, the NLU1G04CMUTCG is capable of handling fast switching applications, ensuring minimal propagation delay and high-frequency operation. The open-drain output enables the possibility to perform wired-AND functions, which adds to the flexibility in circuit design.

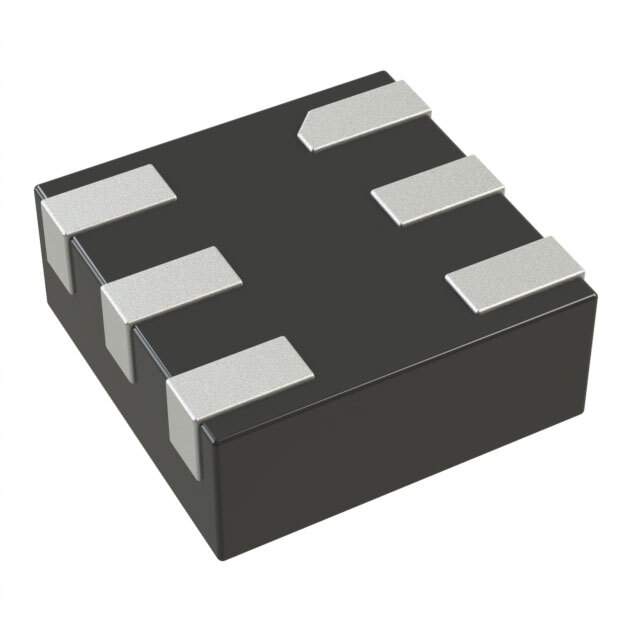

The device is housed in a compact 6-XFDFN exposed pad package, which minimizes the footprint on the PCB and is ideal for space-constrained applications. The operating temperature range of -55°C to +125°C ensures reliable performance across extreme environmental conditions, making it suitable for industrial and automotive applications.

ON Semiconductor's commitment to quality and reliability is evident in the NLU1G04CMUTCG, making it a smart choice for designers looking for a high-performance inverter gate with a proven track record in a broad array of applications.
