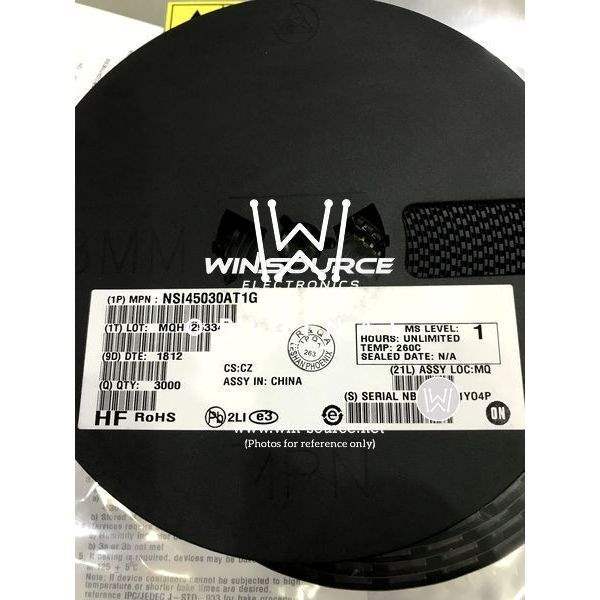

ON Semiconductor NSI45030AT1G Constant Current Regulator

The ON Semiconductor NSI45030AT1G is a robust, high-performance constant current regulator (CCR) designed for driving high-brightness LEDs in a variety of lighting applications. This small-footprint device simplifies the design of LED modules by eliminating the need for external components to set the current, offering an easy-to-use solution that can significantly reduce system complexity and cost.

With a fixed current regulation of 30mA ±10%, the NSI45030AT1G ensures a consistent and stable current supply to LEDs, which is critical for maintaining uniform brightness and color over time. The device can withstand a wide input voltage range from 0V up to 45V, making it versatile for use in multiple LED configurations and able to handle common voltage fluctuations without compromising performance.

The NSI45030AT1G is designed to automatically adjust to different numbers of LEDs in a string and is capable of withstanding high temperature and voltage variations, ensuring reliable operation under harsh conditions. This feature makes it particularly suitable for automotive, industrial, and commercial lighting applications where reliability is paramount.

Furthermore, the CCR incorporates self-protection features that enhance the safety and longevity of LED systems. These include thermal shutdown, which prevents the device from overheating, and negative temperature coefficient, which reduces the output current as the temperature increases, protecting the LEDs from thermal runaway.

Available in a compact SOD-123 package, the NSI45030AT1G is easy to integrate into existing designs, providing a space-efficient solution for LED driving circuits. With its solid-state construction, this CCR is also inherently resistant to shock and vibration, contributing to the overall durability of the lighting system.

ON Semiconductor's NSI45030AT1G is an ideal choice for designers looking for a simple, reliable, and cost-effective way to drive LEDs with consistent brightness and extended lifespan. Its straightforward implementation and robust performance make it a go-to component for a wide range of LED lighting applications.
