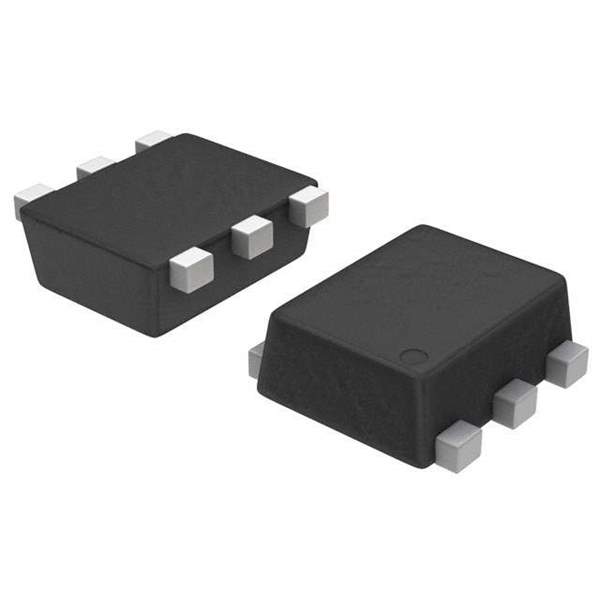

ON Semiconductor NST3904DP6T5G Dual NPN Transistor

The ON Semiconductor NST3904DP6T5G is a high-performance dual NPN bipolar transistor designed for a wide range of applications, offering a compact solution for designers looking for versatile and reliable transistor pairs. This product is well-suited for use in signal processing, amplification, and switching applications, providing efficient performance in a small footprint.

Key Features:

• Transistor Type: Dual NPN Bipolar
• Package: SOT-963, offering a space-saving design ideal for high-density circuit boards.
• Collector-Emitter Voltage (Vceo): 40V, providing a robust operating range for various circuit designs.
• Collector Current (Ic): 200mA, capable of handling moderate current loads.
• DC Current Gain (hFE): 100 at 10mA, 1V, ensuring reliable amplification characteristics.
• Transition Frequency (fT): 300MHz, allowing for high-speed switching operations.
• Operating Temperature Range: -55°C to +150°C, suitable for use in challenging environmental conditions.

Applications:

• General-purpose switching and amplification
• Signal processing circuits
• Audio amplifiers
• Drive circuits
• Power management
• Consumer and industrial electronics

The NST3904DP6T5G is manufactured with ON Semiconductor's proven technology, ensuring high reliability and performance consistency. Its dual NPN configuration allows for design flexibility, making it possible to create more complex circuit topologies without increasing the board space. The device's high transition frequency makes it an excellent choice for RF and high-speed signal applications, while its robust voltage and current specifications ensure it can handle a broad spectrum of design requirements.

With ON Semiconductor's commitment to quality and environmental sustainability, the NST3904DP6T5G is not only a practical choice for electronic designs but also an environmentally conscious one, meeting various industry standards for eco-friendly manufacturing processes.
