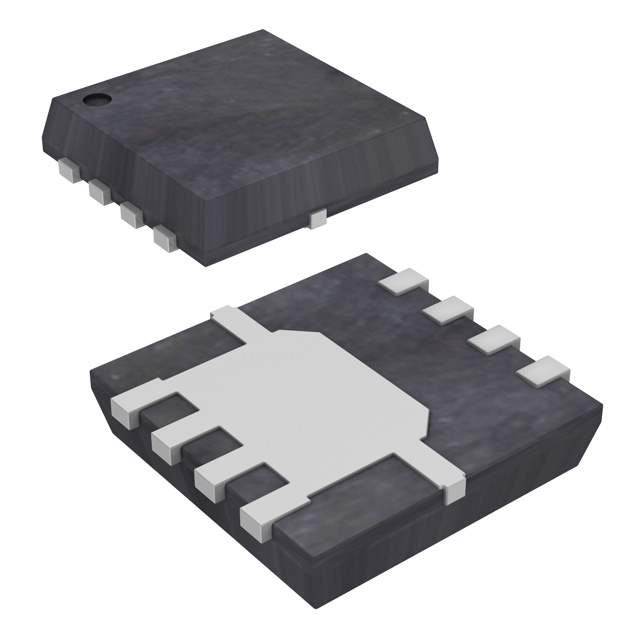

ON Semiconductor NTTFS4930NTWG Overview

The NTTFS4930NTWG is a high-performance, Power MOSFET product from ON Semiconductor, renowned for its efficiency and reliability in various electronic applications. This MOSFET is designed using advanced PowerTrench® technology, which ensures it delivers low on-resistance and minimal gate charge, resulting in a highly efficient power management solution.

Key Features

• Low On-Resistance: The device boasts an exceptionally low R<sub>DS(on), which reduces conduction losses and improves overall efficiency, making it ideal for power-intensive applications.
• High Continuous Drain Current: It supports a high continuous drain current (I<sub>D), enabling it to handle significant power without performance degradation.
• Low Gate Charge: With a low total gate charge (Q<sub>g), the NTTFS4930NTWG ensures fast switching performance, which is crucial for reducing switching losses in power conversion systems.
• Single N-Channel: As a single N-Channel MOSFET, it is well-suited for simple yet efficient circuit designs.
• High-Temperature Performance: The device is capable of operating at high temperatures, maintaining stability and reliability even under thermal stress.

Applications

The NTTFS4930NTWG is versatile and can be used in a wide range of applications, including:

• DC/DC Converters
• Power Supply Load Switches
• Motor Drives
• Battery Management Systems
• Computing and Server Power Supplies

Product Specifications

Parameter Value V<sub>DS (Drain-Source Voltage) 30V I<sub>D (Continuous Drain Current) 17.1A R<sub>DS(on) (On-Resistance) 7.5 mΩ Q<sub>g (Total Gate Charge) 12.5 nC Package 8-Lead SOIC

This ON Semiconductor MOSFET, the NTTFS4930NTWG, is a testament to the company's commitment to providing innovative and energy-efficient solutions for power management challenges.
