ON Semiconductor NUP5150MUTBG ESD Protection Device

The NUP5150MUTBG is a state-of-the-art ESD protection device designed by ON Semiconductor to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and robust component is an ideal solution for protecting sensitive electronics in a variety of applications, including USB interfaces, HDMI connections, and other high-speed data ports.

Key Features

• Low Capacitance: With an ultra-low capacitance of just 0.35 pF typical per I/O, the NUP5150MUTBG ensures minimal signal attenuation, making it suitable for high-speed data applications without compromising signal integrity.
• ESD Protection: It offers superb ESD protection exceeding IEC61000-4-2 Level 4 standards, withstanding ESD events of ±20 kV (air discharge) and ±12 kV (contact discharge), which provides a robust shield for sensitive circuitry.
• Multi-Line Protection: This device is designed to protect up to four data lines, providing a compact and efficient solution for guarding multiple paths within a single package.
• Low Clamping Voltage: The NUP5150MUTBG features a low dynamic resistance and clamping voltage, ensuring that the protected ICs are exposed to minimal stress during transient events.

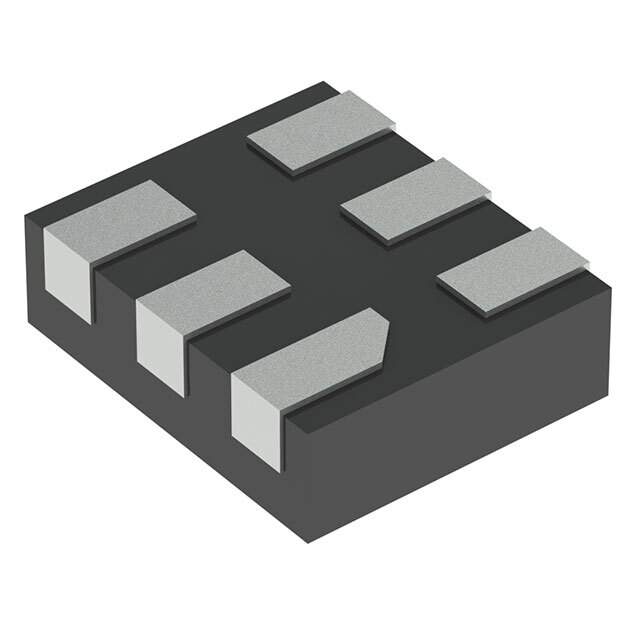

• Small Footprint: Housed in a tiny μDFN-10 package, this component saves valuable board space, making it an excellent choice for portable and space-constrained electronic devices.

Applications

The versatility of the NUP5150MUTBG allows it to be integrated into a wide range of applications. Its primary use is in the protection of high-speed data lines in:

• USB 2.0 and 3.0 interfaces
• HDMI 1.3 and 1.4 ports
• eSATA connections
• DisplayPort interfaces
• LVDS signal lines
• Other applications requiring high-speed data line protection

With its combination of high-performance ESD protection, low capacitance, and small package size, the ON Semiconductor NUP5150MUTBG is an excellent choice for designers looking to enhance the durability and reliability of their electronic products against the threats of electrostatic discharge and transient voltage events.
