ON Semiconductor NVTFS5124PLTWG Overview

The NVTFS5124PLTWG is a high-performance Power MOSFET from ON Semiconductor, designed to deliver efficiency and reliability for a wide range of applications. This device is part of ON Semiconductor's extensive portfolio of energy-efficient power management solutions, reflecting the company's commitment to innovation and excellence in the semiconductor industry.

Key Features

• Low On-Resistance: The NVTFS5124PLTWG features an exceptionally low on-resistance (R<sub>DS(on)), which translates to reduced conduction losses and improved overall efficiency in power conversion applications.
• High Continuous Drain Current: With a high continuous drain current (I<sub>D), this MOSFET can handle significant power levels, making it suitable for high-power applications.
• Thermal Performance: The device is encapsulated in a compact package that provides excellent thermal performance, ensuring stability and longevity even under high-temperature operating conditions.
• Fast Switching Speed: The fast switching capabilities of the NVTFS5124PLTWG enable efficient operation at high frequencies, which is critical for applications like DC-DC converters and motor drives.

Applications

• DC-DC Converters
• Power Supply Modules
• Motor Drives
• Battery Management Systems
• Computing and Server Applications
• Telecommunication Equipment

Technical Specifications

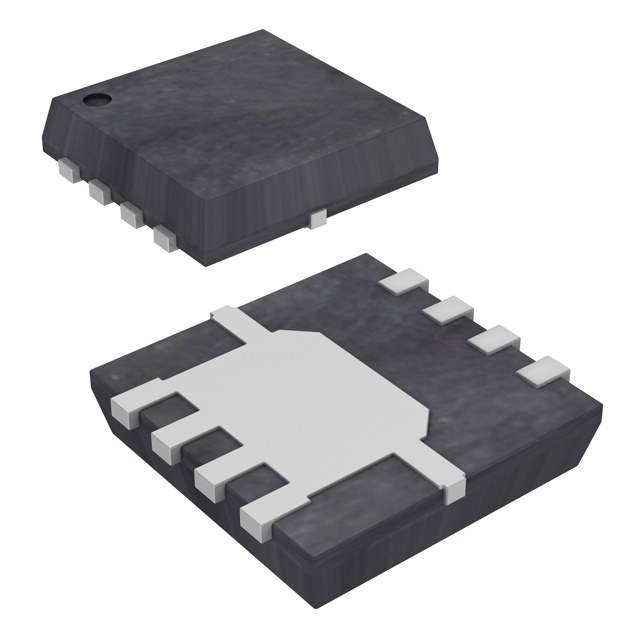

The NVTFS5124PLTWG operates with a drain-source voltage (V<sub>DS) of up to 40V, making it versatile for various circuit topologies. It also boasts a low gate threshold voltage (V<sub>GS(th)), which allows for efficient gate drive and control. The device is housed in a Power 33-8LF package, which is known for its compact footprint and robustness.

Quality and Reliability

ON Semiconductor is renowned for its commitment to quality, and the NVTFS5124PLTWG is no exception. It is manufactured under strict quality control standards and is subjected to rigorous testing to ensure it meets the high reliability demands of industrial and automotive applications.

In conclusion, the NVTFS5124PLTWG from ON Semiconductor is a superior choice for designers looking for a power MOSFET that balances performance, efficiency, and reliability. Its advanced features make it an ideal component for enhancing the power management systems of today's and tomorrow's electronic devices.
