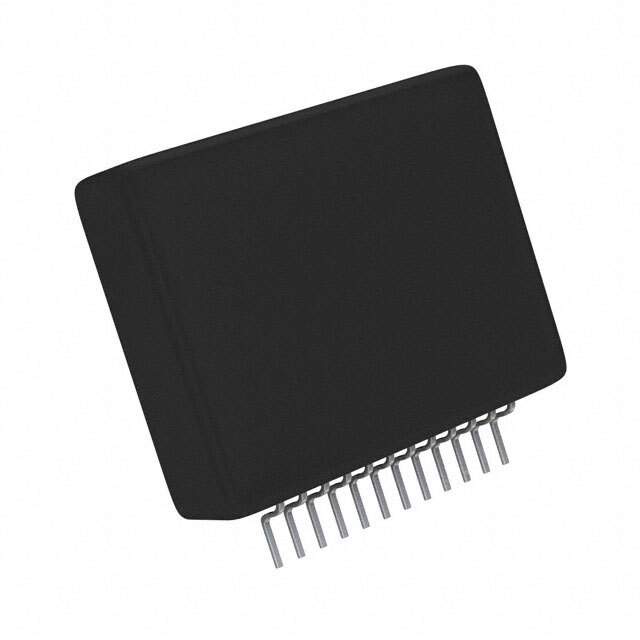

ON Semiconductor STK672-120-SL-E Stepper Motor Driver

The STK672-120-SL-E is a highly-integrated stepper motor driver module produced by ON Semiconductor, a leading provider in the semiconductor industry. This advanced hybrid IC is designed to drive unipolar stepper motors with high precision and efficiency, making it an ideal solution for a wide range of applications including office automation machines, factory automation systems, and medical equipment.

The driver incorporates a unipolar constant-current motor driver hybrid IC which utilizes ON Semiconductor's proprietary micro-stepping control technology. This allows the STK672-120-SL-E to achieve smooth and accurate motor control, with reduced vibration and noise, which is critical for applications requiring precision and quiet operation.

With its built-in micro-stepping controller, the STK672-120-SL-E is capable of dividing the basic step of the stepper motor into smaller micro-steps, providing finer resolution and smoother rotation. The device supports various step resolutions, including full, half, quarter, and 1/16 micro-steps, enabling users to tailor the performance based on the specific requirements of their application.

The STK672-120-SL-E operates over a wide range of supply voltages, typically from 10V to 42V, making it versatile for different environments and ensuring compatibility with various motor specifications. Additionally, it has a maximum output current rating of 2.0A which can be adjusted through external resistors, allowing for optimal current control to match the motor's characteristics.

Safety features are an integral part of the STK672-120-SL-E design. The device includes thermal shutdown (TSD) and over-current detection (ISD) circuits to protect both the driver and the motor from potential damage due to excessive heat or current. These features contribute to the reliability and longevity of the system.

The module comes in a compact package, facilitating easy integration into various system designs without requiring a lot of board space. Its pin layout is designed for straightforward PCB routing, simplifying the design process and accelerating time to market for products incorporating the STK672-120-SL-E.

In summary, the ON Semiconductor STK672-120-SL-E stepper motor driver is a robust, high-performance solution that offers precise motor control with advanced safety features, suitable for a diverse range of professional applications.
