Same model may have multiple batches, images only for reference.

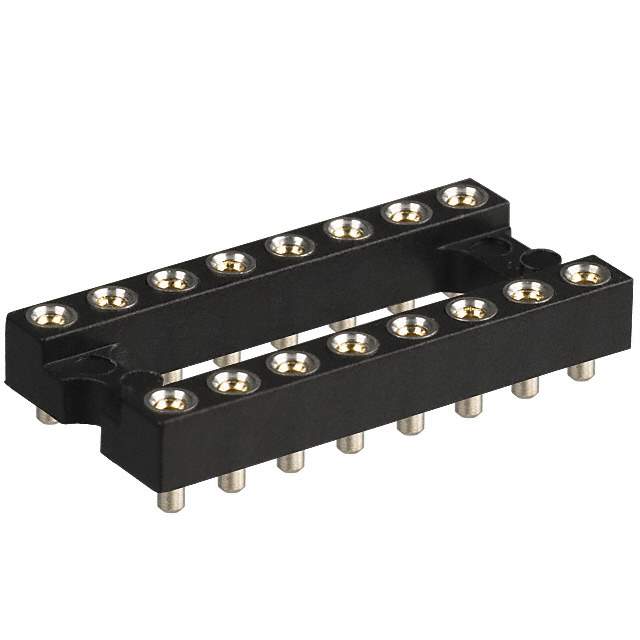

BU160Z-178-HT Real Image
Same model may have multiple batches, images only for reference.

BU160Z-178-HT

Part No BU160Z-178-HT
Manufacturer On Shore Technology Inc.
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 16POS GOLD
Datasheet
BU160Z-178-HT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Tube/Rail
Status Active
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 16 (2 x 8)
Pitch - Mating 2.54mm
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 78.7μin (2.00μm)
Contact Material - Mating Beryllium Copper
Mounting SMD (SMT)
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Copper
Contact Finish Thickness - Post Flash
Contact Material - Post Brass
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C to 125°C
Termination Post Length 0.060" (1.50mm)
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Resistance 7 mOhm
Win Source Part Number 1032104-BU160Z-178-HT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BU160Z-178-HT CAD Model

Description

The On Shore Technology Inc. BU160Z-178-HT is a surface-mount type connector with a row spacing of 0.3" (7.62mm).

  • Positions/Pins: 16
  • Pitch: 2.54mm
  • Housing Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Current Rating: 1A
  • Contact Resistance: 7 mOhm
  • Contact Finish-Mating: Gold
  • Contact Finish-Post: Copper
  • Category: Connectors and Interconnects
  • Status: Active in the market
  • Temperature Range: -55°C to 125°C
  • Packaging: Tube/Rail
  • Pieces Per Package: One
