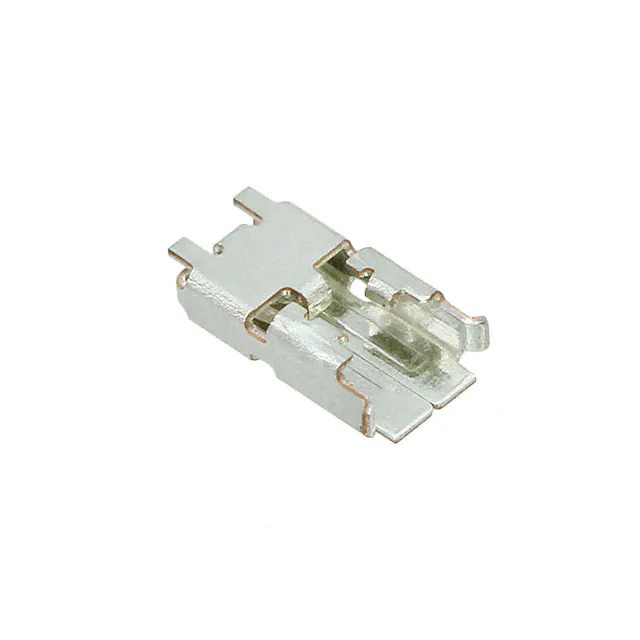

DF59M-1S-H(21) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF59M-1S-H(21)

Part No DF59M-1S-H(21)
Manufacturer Hirose Electric Co Ltd
Catalog Solid State Lighting Connectors
Description CONN SSL RCPT 1POS SOLDER / SSL Connector 1 Position Receptacle Board to Cable/Wire Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Solid State Lighting Connectors - Solid State Lighting Connector Assemblies
Mfr Hirose Electric Co Ltd
Series DF59M
Package Tape & Reel
Product Status Active
Style Board to Cable/Wire
Connector Type Receptacle
Number of Positions 1
Mounting Type Surface Mount
Termination Solder
Pitch -
Fastening Type -
Features -
Housing Color Silver
Wire Gauge -
Contact Material -
Contact Finish -
Housing Material Copper Alloy
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 300V
Current Rating (Amps) 6A
Ingress Protection -
Mating Cycles 20
Base Product Number DF59
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363482-DF59M-1S-H(21)
Ultra Librarian 3D Model Ultra Librarian DF59M-1S-H(21) CAD Model

Description

The 1363482-DF59M-1S-H(21) is a solid state lighting connector assembly manufactured by Hirose Electric Co Ltd.

  • Connection Type: Board to Cable/Wire
  • Current Rating: 6A
  • Voltage Rating: 300V
  • Temperature Range: -40 degrees Celsius to 105 degrees Celsius
  • Housing Color: Silver
  • Housing Material: Copper Alloy
  • Package Size: Tape & Reel
  • Mounting Technology: Surface Mount
