Same model may have multiple batches, images only for reference.

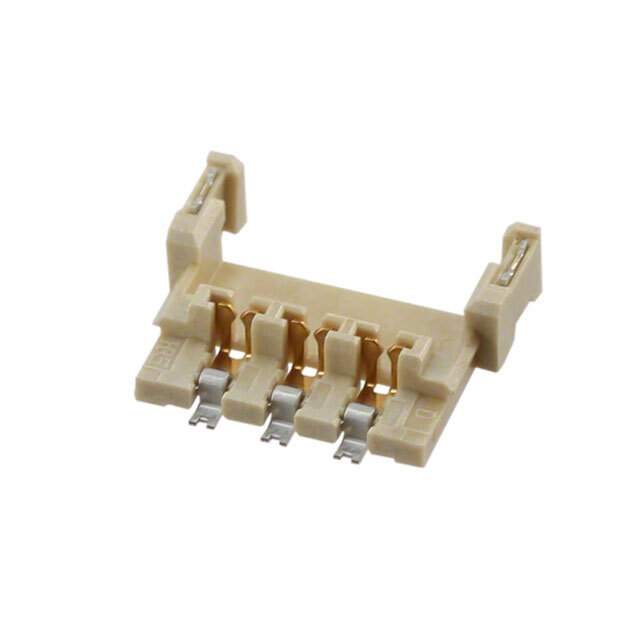

DF59-3S-2V(51) Real Image
Same model may have multiple batches, images only for reference.

DF59-3S-2V(51)

Part No DF59-3S-2V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Solid State Lighting Connectors
Description CONN SSL RCPT 3POS 2MM SOLDER / 2mm Pitch, Multi Functional Connector System
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Style Board to Board or Cable
Connector Type Receptacle
Number of Positions 3
Mounting Style Surface Mount, Right Angle
Termination Solder
Pitch 0.079" (2.00mm)
Features Solder Retention
Housing Color Natural
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -35°C ~ 105°C
Voltage Rating 230V
Current Rating (Amps) 3A
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806710-DF59-3S-2V(51)
Ultra Librarian 3D Model Ultra Librarian DF59-3S-2V(51) CAD Model

Description

The Hirose Electric Co Ltd 806710-DF59-3S-2V(51) surface-mount, right-angle receptacle connector is a highly reliable and durable component designed for board-to-board or cable connections.

  • Pitch: 0.079 inches (2.00mm)
  • Positions: 3
  • Solder Retention: Yes
  • Contact Material: Phosphor Bronze, Gold Finish
  • Housing Material: Liquid Crystal Polymer (LCP), Natural
  • Voltage: 230V
  • Current: 3A
  • Operating Temperature Range: -35°C to 105°C
  • Packaging: Reels
  • Manufacturer Pack Quantity: 2,000
