Same model may have multiple batches, images only for reference.

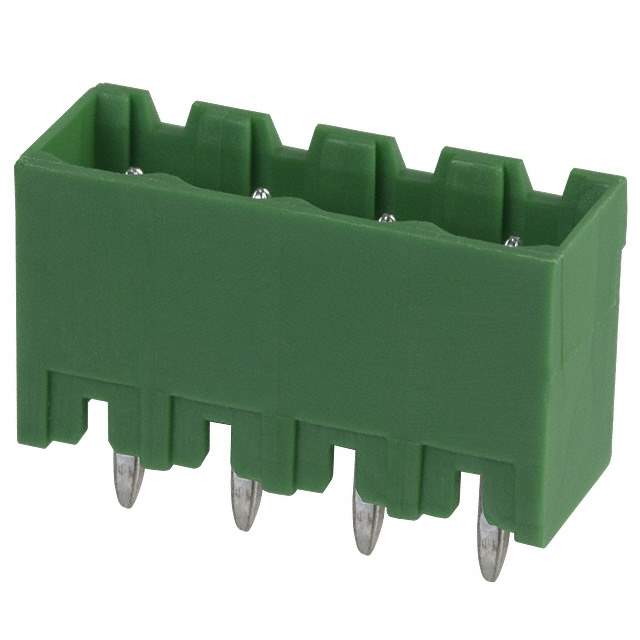

EDSTL955/4 Real Image
Same model may have multiple batches, images only for reference.

EDSTL955/4

Part No EDSTL955/4
Manufacturer On Shore Technology Inc.
Catalog Terminal Blocks
Description TERM BLOCK HDR 4POS VERT 5MM
Datasheet
EDSTL955/4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer On Shore Technology Inc.
Packaging Bulk
Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 4
Pitch 0.197" (5.00mm)
Header Orientation Vertical
Mounting Solder
Voltage - UL 300V
Temperature Range - Operating -30°C to 105°C
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.154" (3.90mm)
Win Source Part Number 1032066-EDSTL955/4
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EDSTL955/4 CAD Model

Description

This On Shore Technology Inc. header is a male pin with shrouded (4 side) type with 4 positions per level and a 0.197" (5.00mm) pitch.

  • Header Orientation: Vertical
  • Mounting Style: Solder
  • Voltage Rating: 300V
  • Housing Material: Polyamide (PA) or Nylon
  • Insulation Height: 0.154" (3.90mm)
  • Temperature Range: -30°C to 105°C
  • Application: Electronic Applications requiring a Vertical Header Orientation
