Same model may have multiple batches, images only for reference.

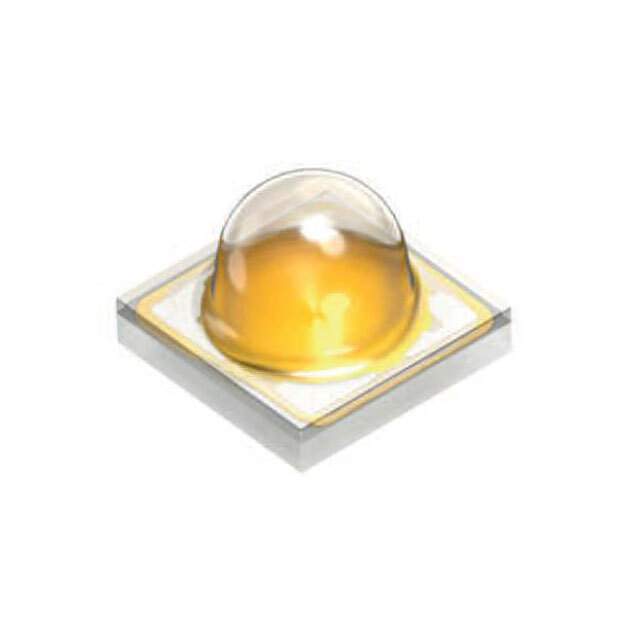

GW CS8PM1.EM-KTLP-XX59-1 Real Image
Same model may have multiple batches, images only for reference.

GW CS8PM1.EM-KTLP-XX59-1

Part No GW CS8PM1.EM-KTLP-XX59-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLON WARM WHITE 2500K
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Series OSLON SSL 80
Packaging Reel package
Color White, Warm
CCT (K) 2500K
Flux @ 85°C, Current - Test 109 lm (97 lm ~ 121 lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.85V
Lumens/Watt @ Current - Test 109 lm/W
CRI (Color Rendering Index) 80
Current - Max 1.3A
Viewing Angle 80°
Mounting SMD
Package 2-SMD, No Lead
Manufacturer Package SMD
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Maximum) 0.084" (2.13mm)
Thermal Resistance of Package 5.25°C/W
Win Source Part Number 766838-GW CS8PM1.EM-KTLP-XX59-1
Popularity Medium
Supply and Demand Status Limited
Quantity per package 600
Ultra Librarian 3D Model Ultra Librarian GW CS8PM1.EM-KTLP-XX59-1 CAD Model

Description

{"FormattedDescription":"

The OSRAM Opto Semiconductors Inc. OSLON SSL 80 is a high-quality electronic component that is perfect for various applications.

  • Packaging: Reel Package
  • Color: White, Warm
  • Supply and Demand Status: Limited
  • Luminous Flux: 109 lumens @ 85°C
"}
