Same model may have multiple batches, images only for reference.

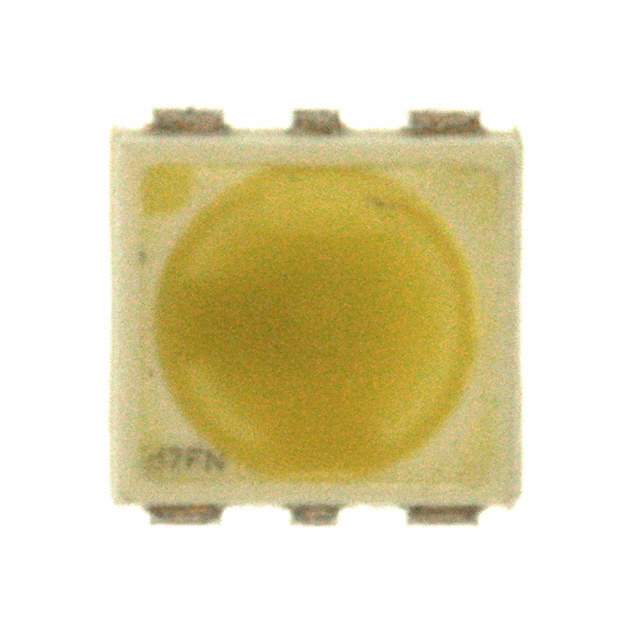

LCW G6SP-CBEB-4J8K-Z Real Image
Same model may have multiple batches, images only for reference.

LCW G6SP-CBEB-4J8K-Z

Part No LCW G6SP-CBEB-4J8K-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED TOPLED NEU WHITE 4500K 6SMD / LED Lighting series White, Neutral 4500K 3.6V 140mA 120° 6-SMD, J-Lead
Datasheet
LCW G6SP-CBEB-4J8K-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr ams-OSRAM USA Inc.
Series Advanced Power TOPLED® Plus
Package Tape & Reel
Product Status Obsolete
Color White, Neutral
CCT (K) 4500K
Flux @ 25°C, Current - Test 21lm (12lm ~ 30lm)
Current - Test 140mA
Voltage - Forward (Vf) (Typ) 3.6V
Lumens/Watt @ Current - Test 42 lm/W
CRI (Color Rendering Index) 80
Current - Max 250mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 6-SMD, J-Lead
Supplier Device Package SMD
Dimension 0.130" L x 0.118" W (3.30mm x 3.00mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 40°C/W
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 475-2615-1,Q65110A7714,475-2615-6,475-2615-2,LCWG6SPCBEB4J8KZ
Standard Package 500
Win Source Part Number 1106752-LCW G6SP-CBEB-4J8K-Z
Ultra Librarian 3D Model Ultra Librarian LCW G6SP-CBEB-4J8K-Z CAD Model

Description

The 1106752-LCW G6SP-CBEB-4J8K-Z is a white, neutral LED lighting component from the Advanced Power TOPLED® Plus series by OSRAM Opto Semiconductors Inc.

  • Package/Case: 6-SMD, J-Lead
  • Dimension: 0.130 inches in length and 0.118 inches in width
  • Seated Height: 0.083 inches
  • Viewing Angle: 120 degrees
  • Color Temperature: 4500K
  • Forward Voltage: 3.6V
  • Maximum Current: 250mA
  • Thermal Resistance: 40 degrees Celsius per watt
  • CRI: 80
  • Supplier Device Package: SMD
  • Component Status: obsolete
