Same model may have multiple batches, images only for reference.

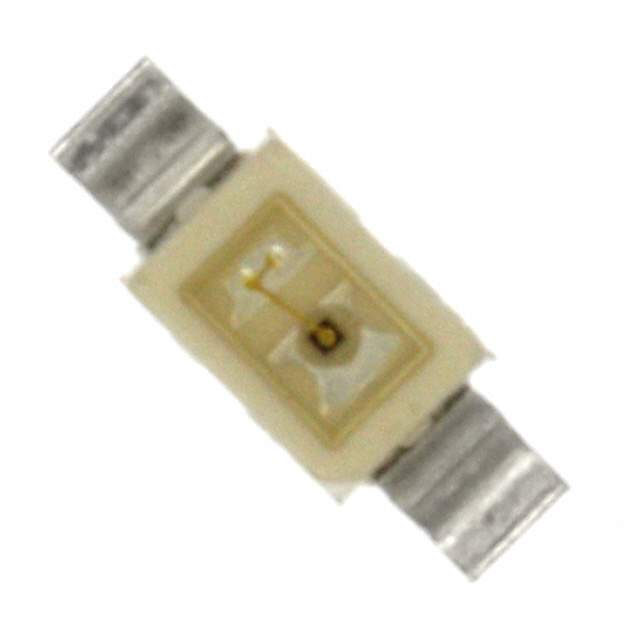

LG M47K-H1J2-24 Real Image
Same model may have multiple batches, images only for reference.

LG M47K-H1J2-24

Part No LG M47K-H1J2-24
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description Opto LG M47K-H1J2-24, Mini TOPLED Santana Series Green LED, 570 nm, Rectangle Lens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Green
Depth 1.5 mm
Dominant Wavelength 570 nm
Forward Current 20 mA
Forward Voltage 2.2 V
Length 2.1 mm
Lens Color Clear
Lens Style Colorless, Diffused, Rectangular
Luminous Flux 14 mlm
Luminous Intensity 7.1 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
Power Dissipation 40 mW
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Test Current 2 mA
Viewing Angle 120 °
Win Source Part Number 1069550-LG M47K-H1J2-24
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LG M47K-H1J2-24 CAD Model

Description

The OSRAM Opto Semiconductors Inc. LG M47K-H1J2-24 is an electronic component with a 14 mlm luminous flux.

  • Supply and Demand: shortage
  • Type: green LED
  • Forward Voltage: 2.2V
  • Luminous Intensity: 7.1 mcd
  • Lens Color: clear
  • Lens Style: rectangular
