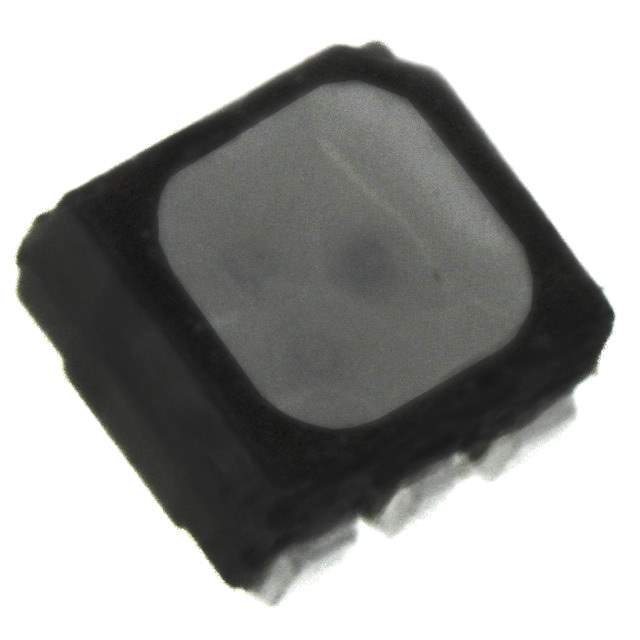

LRTBGFUG-P9R7-1+S7U-29+M7 Real Image
Same model may have multiple batches, images only for reference.

LRTBGFUG-P9R7-1+S7U-29+M7

Part No LRTBGFUG-P9R7-1+S7U-29+M7
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Description LED RGB DIFFUSED 6SMD
Datasheet
LRTBGFUG-P9R7-1+S7U-29+M7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer OSRAM Opto Semiconductors Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Color Red, Green, Blue (RGB)
Configuration Independent
Lens Transparency Diffused
Millicandela Rating 143.5mcd Red, 467mcd Green, 67.2mcd Blue
Lens Style/Size Rectangle with Flat Top, 2.8mm x 2.5mm
Forward Voltage 2.05V Red, 3.2V Green, 3V Blue
Current - Test 10mA Red, 20mA Green, 10mA Blue
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 625nm Red, 528nm Green, 470nm Blue
Wavelength - Peak 632nm Red, 523nm Green, 465nm Blue
Case / Package 6-PLCC
Height (Max) 2.00mm
Win Source Part Number 1057504-LRTBGFUG-P9R7-1+S7U-29+M7
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LRTBGFUG-P9R7-1+S7U-29+M7 CAD Model

Description

The LRTBGFUG-P9R7-1+S7U-29+M7 is an RGB independent surface mount LED from OSRAM Opto Semiconductors Inc. with a rectangular flat top lens style and a size of 2.8mm x 2.5mm.

  • Manufacturer: OSRAM Opto Semiconductors Inc.
  • Type: RGB Independent LED
  • Mounting Type: Surface Mount
  • Lens Style: Rectangular Flat Top
  • Size: 2.8mm x 2.5mm
  • Viewing Angle: 120 degrees
  • Millicandela Rating (Red): 143.5mcd
  • Millicandela Rating (Green): 467mcd
  • Millicandela Rating (Blue): 67.2mcd
  • Forward Voltage (Red): 2.05V
  • Forward Voltage (Green): 3.2V
  • Forward Voltage (Blue): 3V
  • Wavelength (Red): 625nm
  • Wavelength (Green): 528nm
  • Wavelength (Blue): 470nm
  • Supply and Demand Status: Balanced
