Same model may have multiple batches, images only for reference.

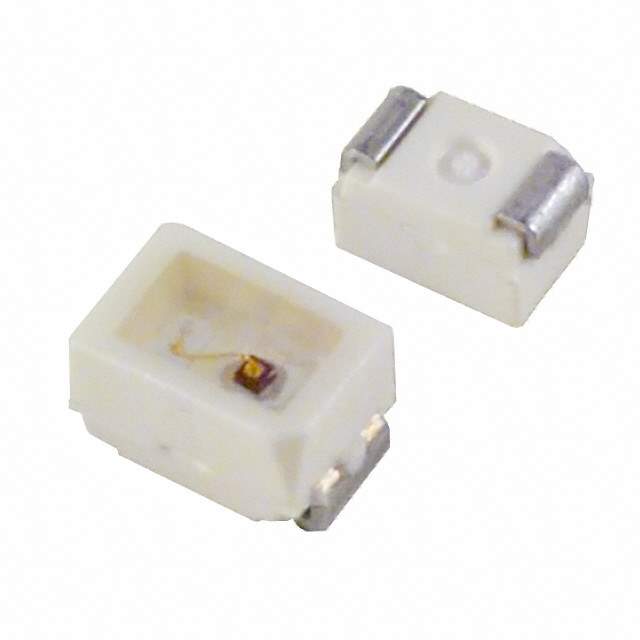

LS M676-Q2S1-1 Real Image
Same model may have multiple batches, images only for reference.

LS M676-Q2S1-1

Part No LS M676-Q2S1-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description Topled Mini Spr Red SMT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Red
Contact Plating Tin
Depth 1.5 mm
Dominant Wavelength 633 nm
Forward Current 30 mA
Forward Voltage 2.3 V
Length 2.3 mm
Lens Style Colorless, Diffused, Rectangular
Luminous Flux 480 mlm
Luminous Intensity 224 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
Power Dissipation 80 mW
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Test Current 20 mA
Viewing Angle 120 °
Win Source Part Number 961773-LS M676-Q2S1-1
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LS M676-Q2S1-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. LED component with Win Source Part Number 961773-LS M676-Q2S1-1 is a surface mount device with SMD/SMT termination.

  • Manufacturer: OSRAM Opto Semiconductors Inc.
  • Termination Style: SMD/SMT
  • Lens Style: colorless, diffused, rectangular
  • Element Count: single
  • Forward Voltage: 2.3V
  • Forward Current: 30mA
  • Luminous Intensity: 224mcd
  • Luminous Flux: 480mlm
  • Viewing Angle: 120 degrees
  • Reverse Voltage: 12V
  • Maximum Operating Temperature: 100 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
  • RoHS Compliant: yes
  • Radiation Hardening: no
  • Supply and Demand Status: shortage
