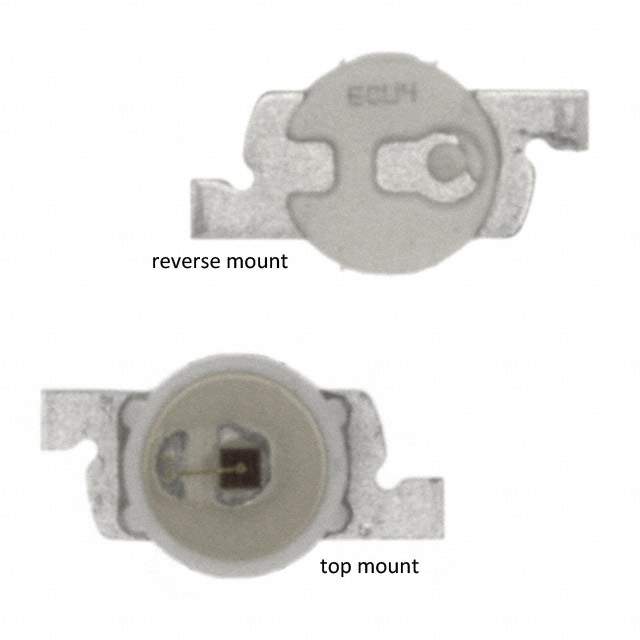

LS P47F-U1AA-1-1-Z Real Image
Same model may have multiple batches, images only for reference.

LS P47F-U1AA-1-1-Z

Part No LS P47F-U1AA-1-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD BOTTOM ENTRY / Red 633nm LED Indication - Discrete 2.2V 2-SMD, Flat Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series PointLED®
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 925mcd
Lens Style Round with Flat Top
Lens Size 1.60mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 30mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 633nm
Wavelength - Peak 645nm
Package / Case 2-SMD, Flat Lead
Supplier Device Package SMD
Dimension 3.40mm L x 1.90mm W
Height (Max) 0.88mm
Base Product Number LSP47F
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 475-1249-6,LSP47F-U1AA-1-1-Z,LSP47FU1AA11,475-1249-1,475-1249-2,LSP47F-U1AA-1-1,LSP47FU1AA11Z,Q65110A4859,LS P47F-U1AA-1-1
Standard Package 3,000
Win Source Part Number 977778-LS P47F-U1AA-1-1-Z
Ultra Librarian 3D Model Ultra Librarian LS P47F-U1AA-1-1-Z CAD Model

Description

The electronic component with the Win Source Part Number 977778-LS P47F-U1AA-1-1-Z is a PointLED® series LED indication product from OSRAM Opto Semiconductors Inc.

  • Color: Red
  • Viewing Angle: 120°
  • Package: Tape & Reel
  • Standard Package: 3,000
  • Mounting: Surface mountable
  • Mounting Type: Bottom Entry
  • Lens Color: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 925mcd
  • Forward Voltage: 2.2V (Typ)
  • Test Current: 30mA
  • Peak Wavelength: 645nm
  • Height: 0.88mm
  • Package/Case: 2-SMD, Flat Lead
