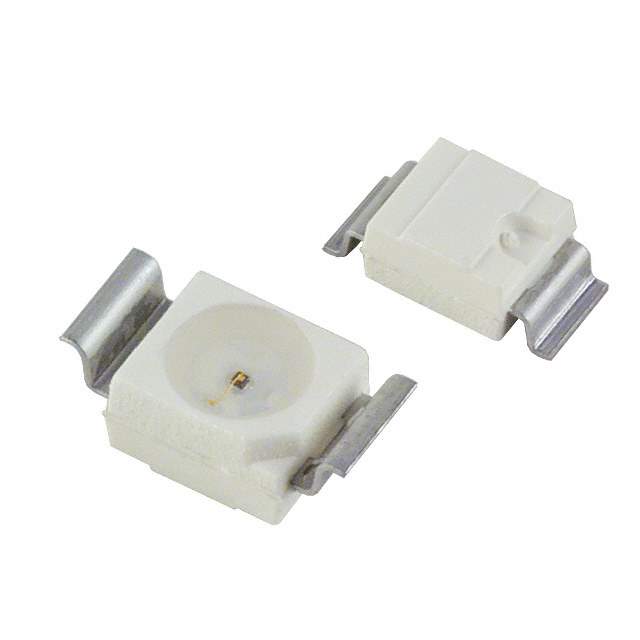

LS T776-Q1R2-1-Z Real Image
Same model may have multiple batches, images only for reference.

LS T776-Q1R2-1-Z

Part No LS T776-Q1R2-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD BOTTOM ENTRY / Red 633nm LED Indication - Discrete 2V 2-SMD, Z-Bend
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series TOPLED® - Reverse Gullwing
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 125.5mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 633nm
Wavelength - Peak 645nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package SMD
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names LST776Q1R21Z,LST776-Q1R2-1,LST776-Q1R2-1-Z,475-1148-6,475-1148-2,Q65110A2220,475-1148-1
Standard Package 2,000
Win Source Part Number 1024697-LS T776-Q1R2-1-Z
Ultra Librarian 3D Model Ultra Librarian LS T776-Q1R2-1-Z CAD Model

Description

The LS T776-Q1R2-1-Z is a red colored LED indication discrete optoelectronic component from ams-OSRAM USA Inc.

  • Millicandela Rating: 125.5mcd
  • Forward Voltage: 2V
  • Viewing Angle: 120 degrees
  • Lens Transparency: Clear
  • Mounting: Surface mounted, bottom entry
  • Package/Case: 2-SMD, Z-bend
  • Lens Style: Round with a flat top
  • Lens Size: 2.40mm Dia
  • Dimension: 3.20mm L x 2.80mm W
  • Configuration: Standard
  • Height: 2.10mm
  • Wavelength Dominant: 633nm
  • Wavelength Peak: 645nm
  • Status: Obsolete
