Same model may have multiple batches, images only for reference.

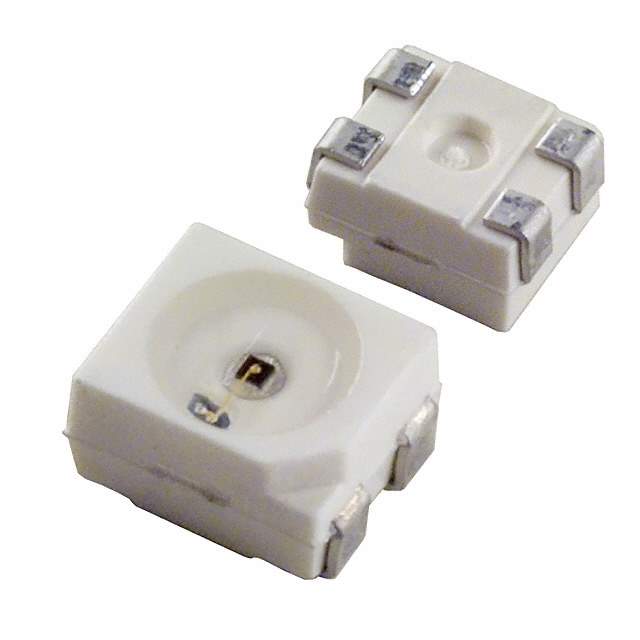

LW E6SG-AABA-JKPL-1-Z Real Image
Same model may have multiple batches, images only for reference.

LW E6SG-AABA-JKPL-1-Z

Part No LW E6SG-AABA-JKPL-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color White 5600K 80 Automotive 4-Pin PLCC T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PLCC
Color White
Depth 3.4 mm
Forward Current 50 mA
Forward Voltage 3.8 V
Length 3 mm
Lens Style Colored, Diffused
Luminous Flux 5.05 lm
Luminous Intensity 2.24 cd
Maximum Operating Temperature 110 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of Pins 4
Radiation Hardening No
RoHS Compliant
Schedule B 8541402000
Test Current 30 mA
Viewing Angle 120 °
Win Source Part Number 974407-LW E6SG-AABA-JKPL-1-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LW E6SG-AABA-JKPL-1-Z CAD Model

Description

The LW E6SG-AABA-JKPL-1-Z is a PLCC packaged LED light pipe that is used in optics. The product is manufactured by OSRAM Opto Semiconductors Inc. and is RoHS compliant. OSRAM Opto Semiconductors Inc.

  • Package: PLCC
  • Application: Optics
  • RoHS Compliant: Yes
  • Popularity: Low
  • Category Code: 8541402000
  • Maximum Operating Temperature: 110 °C
  • Minimum Operating Temperature: -40 °C
  • Viewing Angle: 120 °
  • Luminous Flux: 5.05 lm
