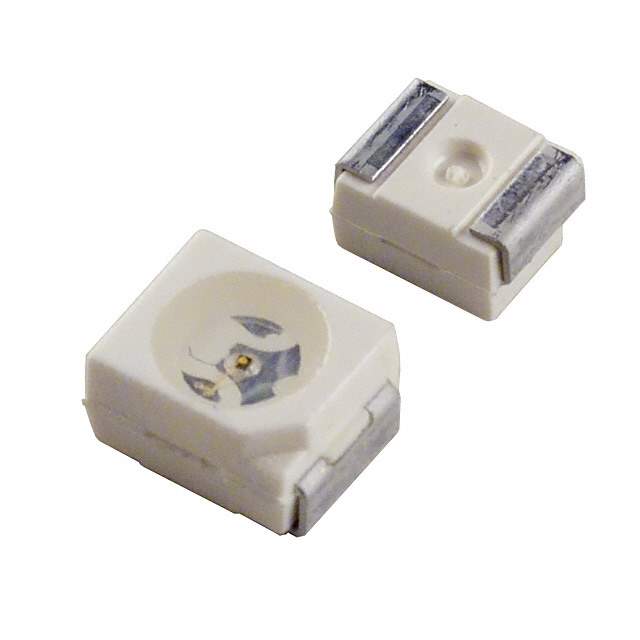

Same model may have multiple batches, images only for reference.

LW T6SC-S2U1-3K6L-Z

Name: LW T6SC-S2U1-3K6L-Z
Brand: OSRAM Opto Semiconductors Inc.
SKU: 1073151
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	LW T6SC-S2U1-3K6L-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Indication - Discrete
Description	LED WHITE DIFFUSED 2PLCC SMD / White LED Indication - Discrete 3.2V 2-PLCC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	ams-OSRAM USA Inc.
Series	TOPLED®
Package	Tape & Reel
Product Status	Last Time Buy
Color	White
Configuration	Standard
Lens Color	Yellow
Lens Transparency	Diffused
Millicandela Rating	392mcd
Lens Style	Round with Flat Top
Lens Size	2.40mm Dia
Voltage - Forward (Vf) (Typ)	3.2V
Current - Test	20mA
Viewing Angle	120°
Mounting	SMD (SMT)
Package / Case	2-PLCC
Supplier Device Package	2-PLCC
Dimension	3.20mm L x 2.80mm W
Height (Max)	2.10mm
Base Product Number	LWT6SC
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	LWT6SCS2U13K6LZ,LWT6SC-S2U1-3K6L,LW T6SC-S2U1-3K6L,475-2785-1,LWT6SCS2U13K6L,Q65110A4098,475-2785-2,LWT6SC-S2U1-3K6L-Z,475-2785-6
Standard Package	2,000
Win Source Part Number	1073151-LW T6SC-S2U1-3K6L-Z
Ultra Librarian 3D Model	Ultra Librarian LW T6SC-S2U1-3K6L-Z CAD Model

Alternative Products

Description

The TOPLED® white LED indication discrete component from ams-OSRAM USA Inc. is an SMD (SMT) mounting type LED with a millicandela rating of 392mcd.

Configuration: standard configuration
Viewing Angle: 120°.
Lens Color: yellow
Lens Transparency: diffused.
Voltage-Forward (Vf): 3.2V
Current-Test: 20mA
Package/Case: 2-PLCC with a dimension of 3.20mm L x 2.80mm W.
Lens Style: round with a flat top
Lens Size: 2.40mm Dia.
Alternative Parts (cross-reference): LW T6SC-S2U1-3K6L-ZQ65110-A4098 and Q65110A4098.
REACH: REACH unaffected
ECCN: EAR99.
MSL Level: 2 (1 year).
