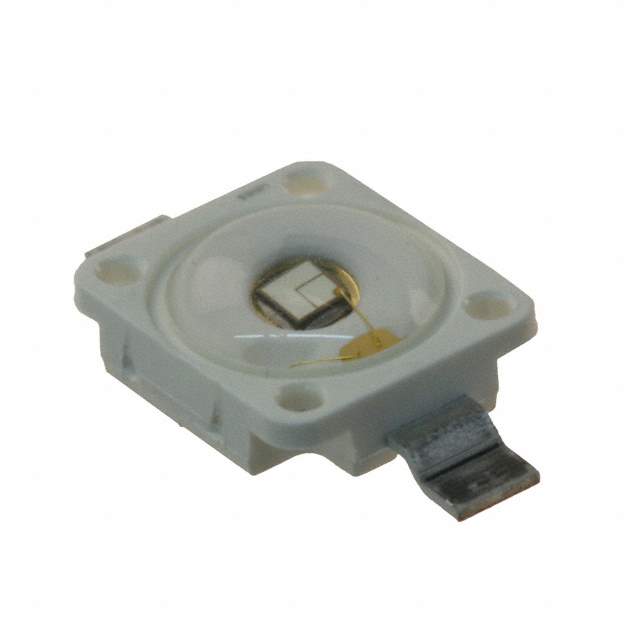

Same model may have multiple batches, images only for reference.

LB W5AM-GYHY-25-0-350-R18-Z

Get a Quote

Part No	LB W5AM-GYHY-25-0-350-R18-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Lighting - Color
Datasheet	LB W5AM-GYHY-25-0-350-R18-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	ams-OSRAM USA Inc.
Series	Golden DRAGON® Plus
Package	Tape & Reel
Product Status	Obsolete
Color	Blue
Wavelength	468nm (459nm ~ 476nm)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	3.2V
Lumens/Watt @ Current - Test	27 lm/W
Current - Max	1A
Luminous Flux @ Current/Temperature	30lm (21lm ~ 39lm)
Temperature - Test	25°C
Viewing Angle	170°
Mounting	SMD (SMT)
Package / Case	2-SMD, Gull Wing
Supplier Device Package	SMD
Dimension	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Thermal Resistance of Package	6.5°C/W
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1314844-LB W5AM-GYHY-25-0-350-R18-Z
Ultra Librarian 3D Model	Ultra Librarian LB W5AM-GYHY-25-0-350-R18-Z CAD Model

Alternative Products

Description

The 1314844-LB W5AM-GYHY-25-0-350-R18-Z is an LED lighting color electronic component manufactured by ams-OSRAM USA Inc.

Series: Golden DRAGON® Plus
Mounting Type: Surface Mount
Height - Max: 0.122 inches (3.10mm)
Current - Max: 1A
Viewing Angle: 170°
Voltage - Forward (Vf) (Typ): 3.2V
Current - Test: 350mA
Wavelength: 468nm (459nm ~ 476nm)
Lumens/Watt @ Current - Test: 27 lm/W
Thermal Resistance of the Package: 6.5°C/W
Temperature - Test: 25°C
Package / Case: 2-SMD, Gull Wing
Operating Temperature: -55°C ~ 150°C (TJ)
