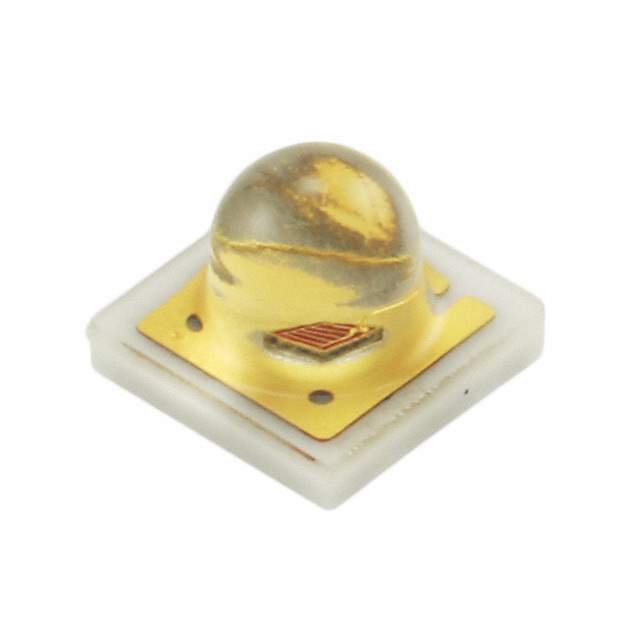

LD CN5M-1R1S-35-1-140-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LD CN5M-1R1S-35-1-140-R18-Z

Part No LD CN5M-1R1S-35-1-140-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - Color
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr ams-OSRAM USA Inc.
Series OSLON® SX
Package Tape & Reel
Product Status Obsolete
Color Blue
Wavelength 455nm (449nm ~ 461nm)
Current - Test 140mA
Voltage - Forward (Vf) (Typ) 3.3V
Current - Max 250mA
Luminous Flux @ Current/Temperature 157mW (112mW ~ 201mW)
Temperature - Test 25°C
Viewing Angle 60°
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package SMD
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.100" (2.55mm)
Thermal Resistance of Package 27°C/W
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315424-LD CN5M-1R1S-35-1-140-R18-Z
Ultra Librarian 3D Model Ultra Librarian LD CN5M-1R1S-35-1-140-R18-Z CAD Model

Description

The OSLON SX LED is a high-performance optoelectronic component designed for LED lighting applications.

  • Color: blue
  • Viewing Angle: 60 degrees
  • Maximum Current: 250mA
  • Voltage: 3.3V
  • Wavelength: 455nm (449nm ~ 461nm)
  • Thermal Resistance: 27 degrees Celsius per watt
  • Package Size: 1212 (3030 Metric)
