Same model may have multiple batches, images only for reference.

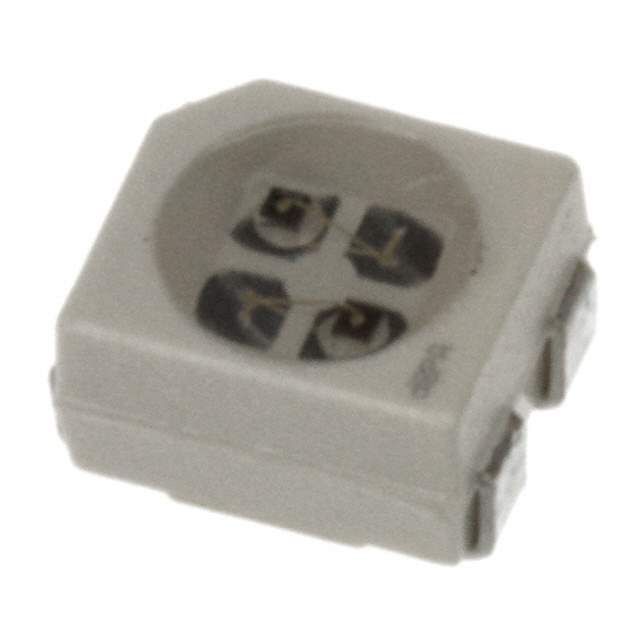

LSY T67B-R2T2-1-0+S2U2-26-0-30-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LSY T67B-R2T2-1-0+S2U2-26-0-30-R18-Z

Part No LSY T67B-R2T2-1-0+S2U2-26-0-30-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Datasheet
LSY T67B-R2T2-1-0+S2U2-26-0-30-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Multi TOPLED®
Package Tape & Reel
Product Status Last Time Buy
Color Red, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 295mcd Red, 467mcd Yellow
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.1V Red, 2.1V Yellow
Current - Test 30mA Red, 30mA Yellow
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 633nm Red, 587nm Yellow
Wavelength - Peak 645nm Red, 594nm Yellow
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number LSYT67B
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1315446-LSY T67B-R2T2-1-0+S2U2-26-0-30-R18-Z
Ultra Librarian 3D Model Ultra Librarian LSY T67B-R2T2-1-0+S2U2-26-0-30-R18-Z CAD Model

Description

The LSY T67B-R2T2-1-0+S2U2-26-0-30-R18-Z is a multi TOPLED LED indication product that comes in red and yellow colors.

  • Configuration: Independent
  • Viewing Angle: 120°
  • Lens Transparency: Clear
  • Millicandela Rating (Red): 295mcd
  • Millicandela Rating (Yellow): 467mcd
  • Voltage Forward (Vf) (Red/Yellow): 2.1V
  • Current Test (Red/Yellow): 30mA
  • Dominant Wavelength (Red): 633nm
  • Dominant Wavelength (Yellow): 587nm
  • Peak Wavelength (Red): 645nm
  • Peak Wavelength (Yellow): 594nm
  • Package/Case: 4-PLCC
  • Supplier Device Package: 4-PLCC
  • Height: 2.10mm
  • Dimension: 3.20mm L x 2.80mm W
  • Lens Style: Round with Flat Top
  • Lens Size: 2.40mm diameter
