Same model may have multiple batches, images only for reference.

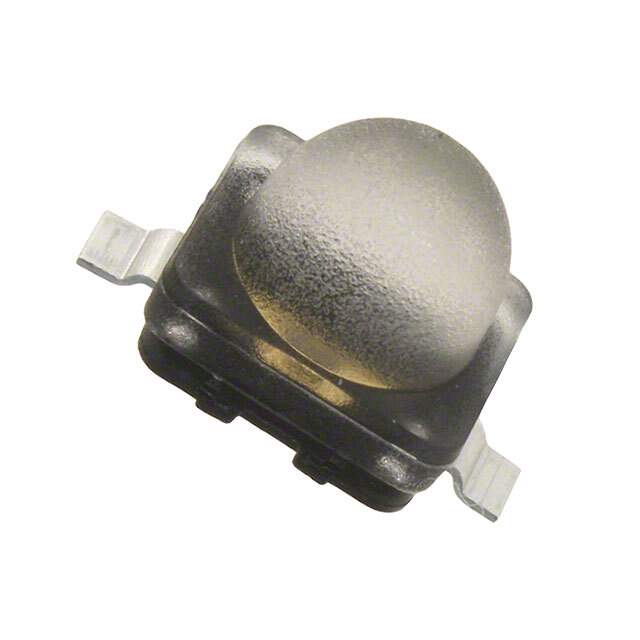

SFH 4236 Real Image
Same model may have multiple batches, images only for reference.

SFH 4236

Part No SFH 4236
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 850NM 1A SMD / Infrared (IR) Emitter 850nm 1.5V 1A 250mW/sr @ 1A 40° 2-SMD, Gull Wing
Datasheet
SFH 4236 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 1A
Radiant Intensity (Ie) Min @ If 250mW/sr @ 1A
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 40°
Orientation Top View
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing
Other Names SFH4236,475-2911-1,475-2911-2,475-2911-6,Q65110A9564
Standard Package 500
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242449-SFH 4236
Ultra Librarian 3D Model Ultra Librarian SFH 4236 CAD Model

Description

The SFH 4236 infrared (IR) LED emitter is a product from ams-OSRAM USA Inc. with a viewing angle of 40°.

  • Current-DC forward (If) (Max): 1A
  • Voltage forward (Vf) (Typ): 1.5V
  • Wavelength: 850nm
  • Radiant Intensity (Ie) Min @ If: 250mW/sr @ 1A
  • Package/Case: 2-SMD, Gull Wing
  • Temperature Range for Operating: -40°C ~ 125°C (TA)
  • Win Source Part Number: 1242449-SFH 4236
  • Standard Package: 500
  • Orientation: top view
  • Mounting: SMD (SMT)
  • MSL level: 2 (1 Year)
  • REACH status: REACH Unaffected
  • HTSUS: 8541.41.0000
  • Other names: SFH4236, 475-2911-1, 475-2911-2, 475-2911-6, and Q65110A9564
  • Status: obsolete
