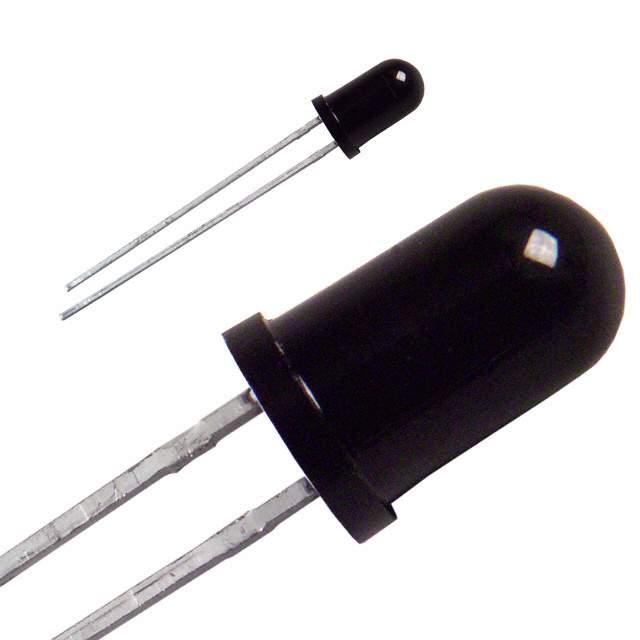

SFH 4502 Real Image
Same model may have multiple batches, images only for reference.

SFH 4502

Part No SFH 4502
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 100MA T 1 3/4 / Infrared (IR) Emitter 950nm 1.5V 100mA 25mW/sr @ 100mA 36° T 1 3/4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Bulk
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 25mW/sr @ 100mA
Wavelength 950nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 36°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case T 1 3/4
Other Names 475-1103,Q62702P5062,SFH4502
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242474-SFH 4502
Ultra Librarian 3D Model Ultra Librarian SFH 4502 CAD Model

Description

The 1242474-SFH 4502 is an infrared LED emitter from ams-OSRAM USA Inc. The LED has a viewing angle of 36° and a wavelength of 950nm.

  • Forward Voltage (Vf): 1.5V
  • DC Forward Current (If): 100mA (max)
  • Radiant Intensity: 25mW/sr @ 100mA
  • Mounting Type: through-hole
  • Package/Case: T 1 3/4
  • Temperature Range: -40°C to 100°C
  • Status: obsolete
  • Other Names: 475-1103, Q62702P5062, SFH4502
