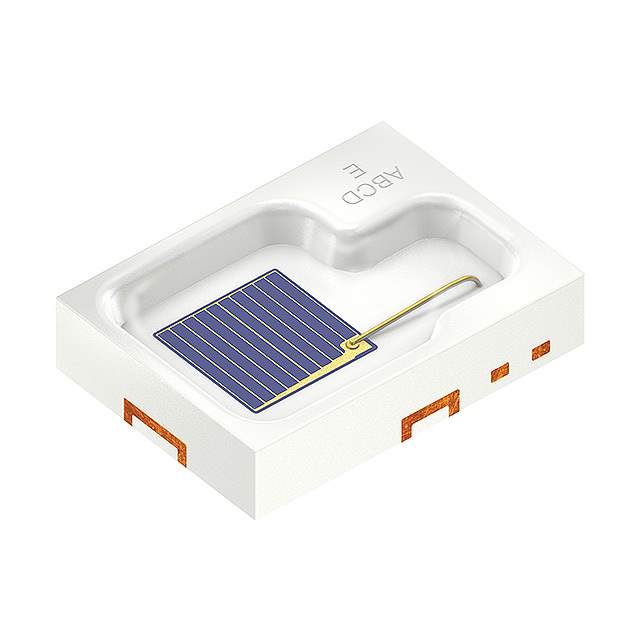

SFH 4775S Real Image
Same model may have multiple batches, images only for reference.

SFH 4775S

Part No SFH 4775S
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 1.5A SMD / Infrared (IR) Emitter 950nm 2.8V 1.5A 360mW/sr @ 1A (Typ) 120° 1108 (2720 Metric)
Datasheet
SFH 4775S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series TOPLED
Package Tape & Reel
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 1.5A
Radiant Intensity (Ie) Min @ If 360mW/sr @ 1A (Typ)
Wavelength 950nm
Voltage - Forward (Vf) (Typ) 2.8V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 1108 (2720 Metric)
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names Q65112A7448,SFH4775S,Q65112A4691,475-3535-6,475-3535-2,475-3535-1,SFH4775S-ND,SFH4775SINACTIVE
Standard Package 2,000
Win Source Part Number 1128492-SFH 4775S
Ultra Librarian 3D Model Ultra Librarian SFH 4775S CAD Model

Description

The SFH 4775S is a Top View Infrared (IR) LED emitter from the TOPLED series of OSRAM Opto Semiconductors Inc.

  • Packaging: Tape & Reel
  • Standard Package: 2,000
  • Mounting: SMD (SMT)
  • Maximum DC Forward Current: 1.5A
  • Typical Forward Voltage: 2.8V
  • Viewing Angle: 120 degrees
  • Wavelength: 950nm
  • Radiant Intensity (Ie): 360mW/sr @ 1A (Typ)
  • Temperature Range: -40°C to 100°C (TA)
  • Product Status: obsolete
  • Alternative Parts (cross-reference): SFH4775S, Q65112A7448, Q65112A4691, 475-3535-6, 475-3535-2, 475-3535-1, SFH4775S-ND, and SFH4775SINACTIVE
