Same model may have multiple batches, images only for reference.

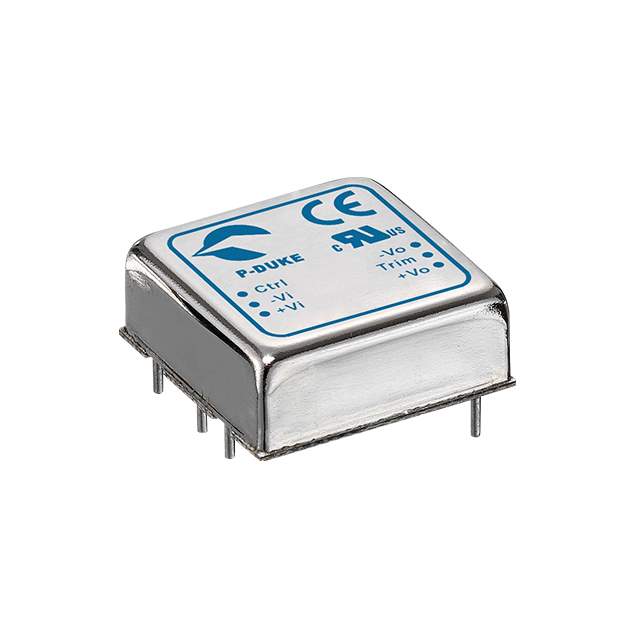

LCD20-48S15W Real Image
Same model may have multiple batches, images only for reference.

LCD20-48S15W

Part No LCD20-48S15W
Manufacturer P-DUKE Technology, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 20W / Isolated Module DC DC Converter 1 Output 15V 1.33A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr P-DUKE Technology, Inc.
Series LCD20W (20W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Current - Output (Max) 1.33A
Power (Watts) 20 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off
Temperature Range - Operating -40°C ~ 101°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Approval Agency CB, CE, cURus
Base Product Number LCD20
MSL Level Not Applicable
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2369-LCD20-48S15W
Standard Package 10
Win Source Part Number 1216554-LCD20-48S15W
Ultra Librarian 3D Model Ultra Librarian LCD20-48S15W CAD Model

Description

The P-DUKE Technology, Inc. LCD20-48S15W is a 20W isolated module DC-DC converter that comes with remote on/off features.

  • Application: ITE (Commercial)
  • Efficiency: 90%
  • Voltage Isolation: 1.6 kV
  • Number of Outputs: 1
  • Current Output (max): 1.33A
  • Voltage Input (min): 18V
  • Voltage Input (max): 75V
  • Voltage Output 1: 15V
  • Win Source Part Number: 1216554-LCD20-48S15W
