Same model may have multiple batches, images only for reference.

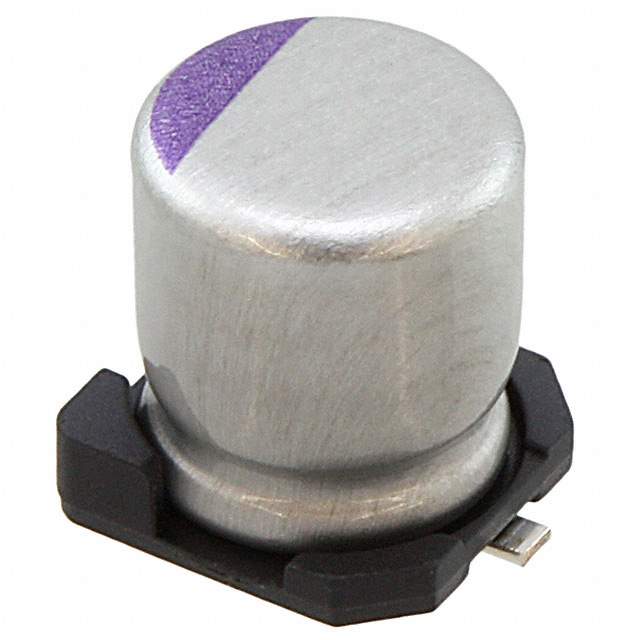

16SVP15M Real Image
Same model may have multiple batches, images only for reference.

16SVP15M

Part No 16SVP15M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 15UF 20% 16V SMD  /  15 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 120mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVP
Package Tape & Reel
Type Polymer
Capacitance 15 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 120mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 51 mA @ 120 Hz
Ripple Current @ High Frequency 1.02 A @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVP
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16459DKR,P16459TR,P16459CT
Standard Package 1,500
Win Source Part Number 1185117-16SVP15M
Ultra Librarian 3D Model Ultra Librarian 16SVP15M CAD Model

Description

The Panasonic Electronic Components OS-CON™ SVP series capacitor has a capacitance of 15 µF and is rated for 16V.

  • Capacitance: 15 µF
  • Voltage: 16V
  • Tolerance: ±20%
  • ESR: 120mOhm
  • Series: SVP
  • Packaging: Tape and Reel
  • Application: General Purpose
  • Height: 0.236" (6.00mm)
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • REACH: Unaffected
  • HTSUS Code: 8532.22.0020
