Same model may have multiple batches, images only for reference.

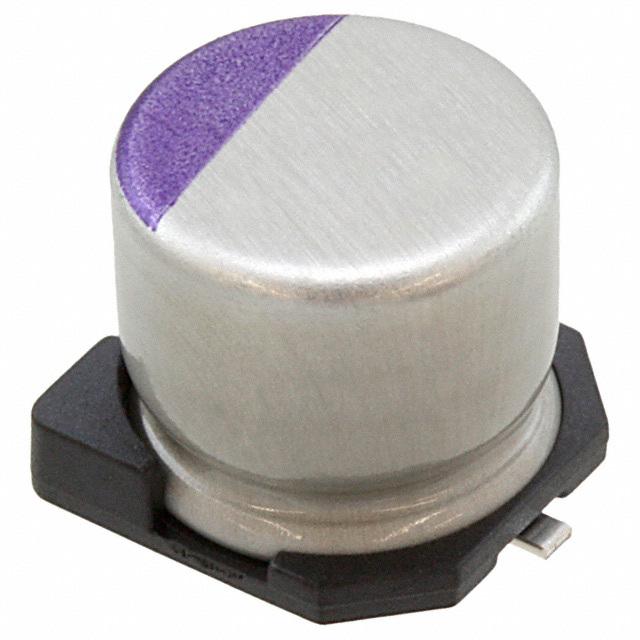

20SVP22M Panasonic
Same model may have multiple batches, images only for reference.

20SVP22M

Part No 20SVP22M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 20V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVP
Packaging Reel package
Type Polymer
Capacitance 22μF
Tolerance ±20%
Voltage Rating 20V
ESR (Equivalent Series Resistance) 60 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Ripple Current - Low Frequency 72.5mA @ 120Hz
Ripple Current - High Frequency 1.45A @ 100kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 761765-20SVP22M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name SVP
Introduction Date October 02, 2002
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 20SVP22M CAD Model

Description

The Panasonic Electronic Components OS-CON SVP 20SVP22M is a polymer type capacitor designed for use in electronic components.

  • Package: Radial, Can - SMD
  • Voltage Rating: 20V
  • Capacitance: 22μF
  • Ripple Current - Low Frequency: 72.5mA @ 120Hz
  • Ripple Current - High Frequency: 1.45A @ 100kHz
  • Supply/Demand Status: Balanced
  • Popularity: Medium
