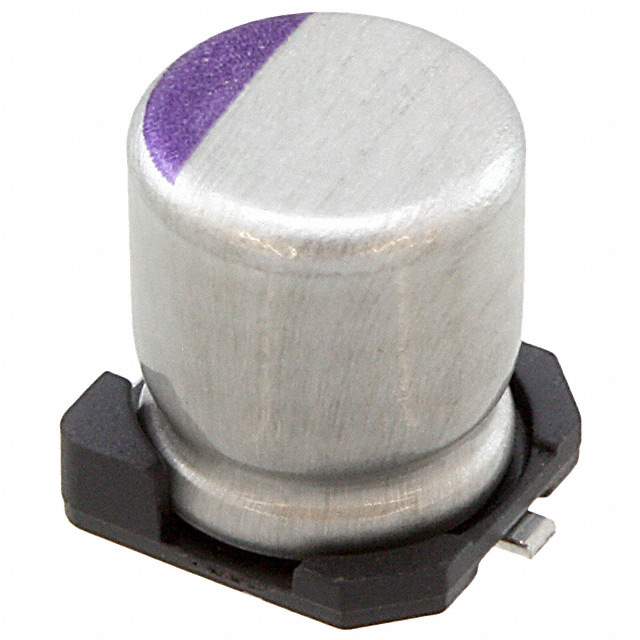

20SVPB15M Real Image
Same model may have multiple batches, images only for reference.

20SVPB15M

Part No 20SVPB15M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 15UF 20% 20V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Type Polymer
Capacitance 15μF
Tolerance ±20%
Voltage - Rated 20V
ESR (Equivalent Series Resistance) 45mOhm
Lifetime at Temp. 1000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current at Low Frequency 100mA at 120Hz
Ripple Current at High Frequency 2A at 100kHz
Parts Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.197"
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 751027-20SVPB15M
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 20SVPB15M CAD Model

Description

The Panasonic Electronic Components 751027-20SVPB15M is a polymer capacitor with a capacitance of 15μF and a tolerance of ±20%. It is rated for 20V and has an ESR (Equivalent Series Resistance) of 45mOhm.

  • Mounting Technology: SMD
  • Applications: Designed for general purpose applications.
  • Supply and Demand Status: Balanced
  • Package: 1
