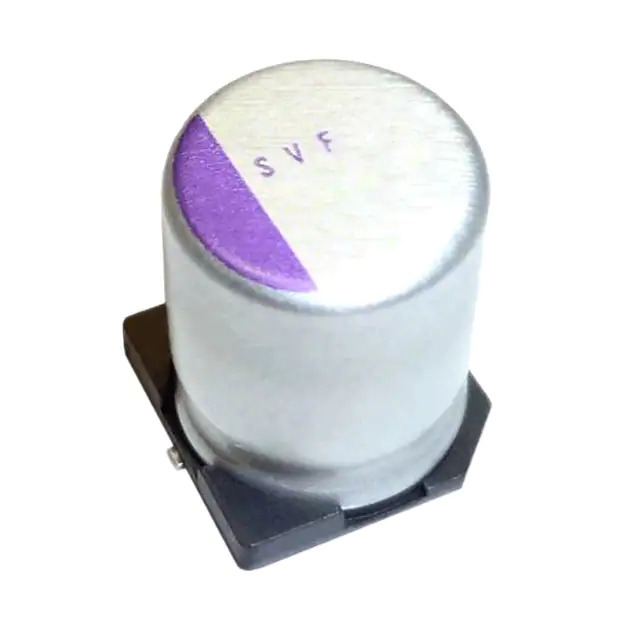

25SVF100M Panasonic
Same model may have multiple batches, images only for reference.

25SVF100M

Part No 25SVF100M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 25V SMD / 100 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVF
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 24mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 50.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.01 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 25SVF
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359583-25SVF100M
Ultra Librarian 3D Model Ultra Librarian 25SVF100M CAD Model

Description

The Panasonic Electronic Components 25SVF100M is a polymer capacitor from the OS-CON™ SVF series.

  • Series: OS-CON™ SVF
  • Capacitance: 100 µF
  • Voltage - Rated: 25V
  • ESR (Equivalent Series Resistance): 24mOhm
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Size: 0.315" Dia (8.00mm)
  • Height: 0.276" (7.00mm)
  • Ripple Current: 50.5 mA @ Low Frequency (120 Hz), 1.01 A @ High Frequency (100 kHz)
  • Application: General Purpose
  • Lifetime: 1000 Hrs @ 125°C
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
