Same model may have multiple batches, images only for reference.

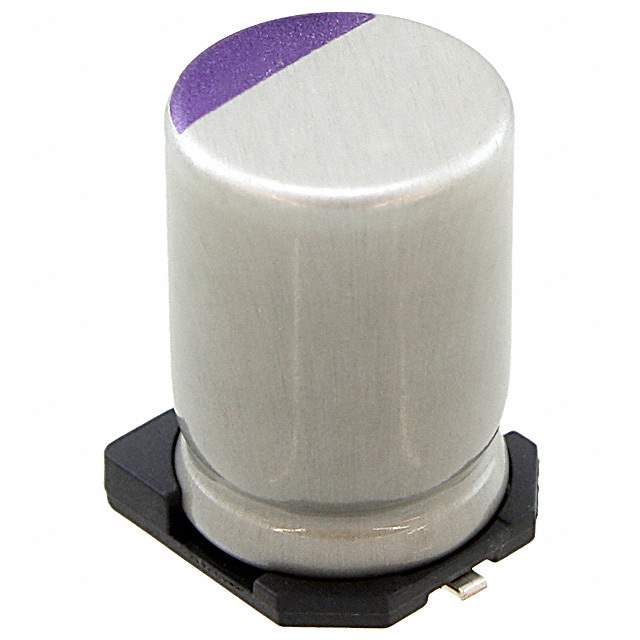

2R5SVP680M Real Image
Same model may have multiple batches, images only for reference.

2R5SVP680M

Part No 2R5SVP680M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 680UF 20% 2.5V SMD  /  680 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can - SMD 13mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVP
Package Tape & Reel
Type Polymer
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 2.5 V
ESR (Equivalent Series Resistance) 13mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 226 mA @ 120 Hz
Ripple Current @ High Frequency 4.52 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 2R5SVP
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16521CT,P16521DKR,P16521TR
Standard Package 400
Win Source Part Number 1182397-2R5SVP680M
Ultra Librarian 3D Model Ultra Librarian 2R5SVP680M CAD Model

Description

The 2R5SVP680M is an aluminum-polymer capacitor from Panasonic Electronic Components.

  • Capacitance: 680µF
  • Voltage Rating: 2.5V
  • Tolerance: ±20%
  • ESR: 13mOhm
  • Package: Radial, Can - SMD
  • Height: 0.472" (12.00mm)
  • Ripple Current (120 Hz): 226 mA
  • Ripple Current (100 kHz): 4.52 A
  • Lifetime: 2000 Hrs @ 105°C
  • Application: General-Purpose
