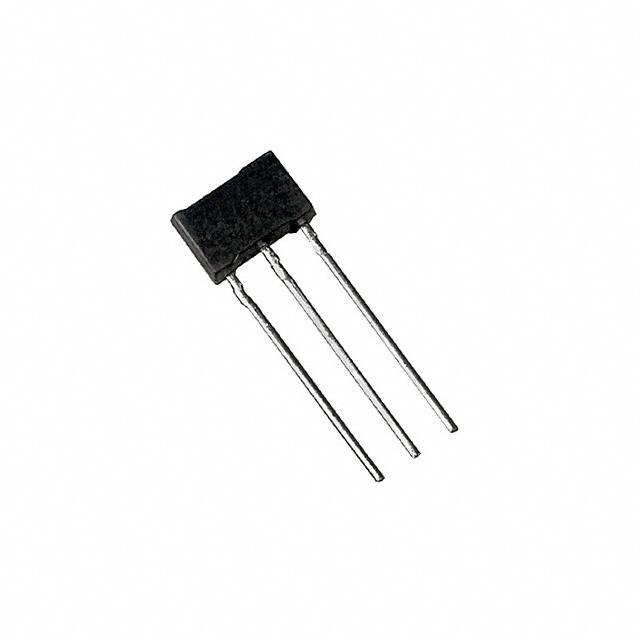

2SB1322A0A Panasonic
Same model may have multiple batches, images only for reference.

2SB1322A0A

Part No 2SB1322A0A
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 1A MT-2
Datasheet
2SB1322A0A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 1A
Voltage - Collector Emitter Breakdown (Maximum) 50V
Vce Saturation (Maximum) @ Ib, Ic 400mV @ 50mA, 500mA
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 85 @ 500mA, 10V
Power - Max 1W
Frequency - Transition 200MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package 3-SIP
Manufacturer Package MT-2-A1
Win Source Part Number 762505-2SB1322A0A
Popularity Medium
Supply and Demand Status Balance
Family Name 2SB1322A
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SB1322A0A CAD Model

Description

The Panasonic Electronic Components 762505-2SB1322A0A is an obsolete (EOL) electronic component that is manufactured by Panasonic.

  • Package: 3-SIP
  • Power-Max: 1W
  • Transistor Type: PNP
  • Voltage-Collector Emitter Breakdown: 50V
  • Current-Collector (Ic) Maximum: 1A
  • DC Current Gain (hFE): 85 @ 500mA, 10V
  • Frequency-Transition: 200MHz

The Panasonic Electronic Components 762505-2SB1322A0A is a high-quality component that can be used in various electronic devices. Although it is an obsolete product, it is still a reliable and durable component that can be used in various electronic applications.
