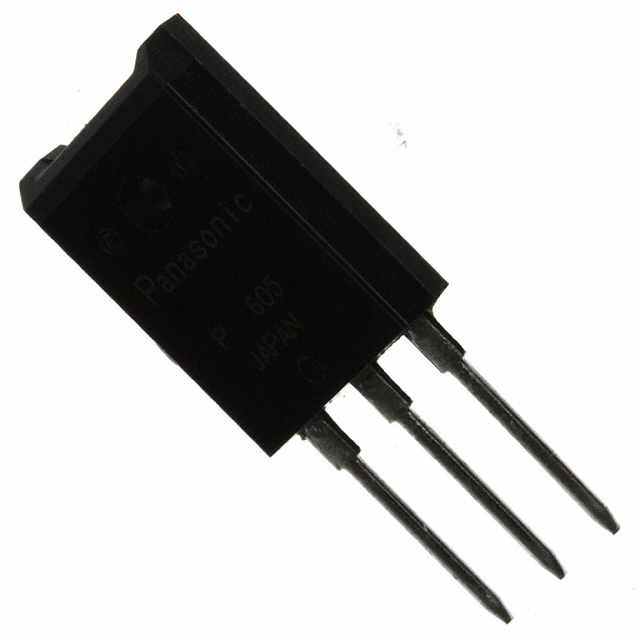

2SB11560P Panasonic
Same model may have multiple batches, images only for reference.

2SB11560P

Part No 2SB11560P
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 80V 20A TOP-3F
Datasheet
2SB11560P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 20A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 2A, 20A
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 130 @ 3A, 2V
Power - Max 3W
Frequency - Transition 30MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TOP-3F
Manufacturer Package TOP-3F-A1
Win Source Part Number 762471-2SB11560P
Popularity Medium
Supply and Demand Status Balance
Family Name 2SB1156P
Introduction Date March 17, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SB11560P CAD Model

Description

The Panasonic Electronic Components 2SB11560P is a PNP transistor.

  • Maximum Collector Current: 20A
  • Maximum Collector-Emitter Voltage: 80V
  • Power Rating: 3W
  • Frequency Transition: 30MHz
