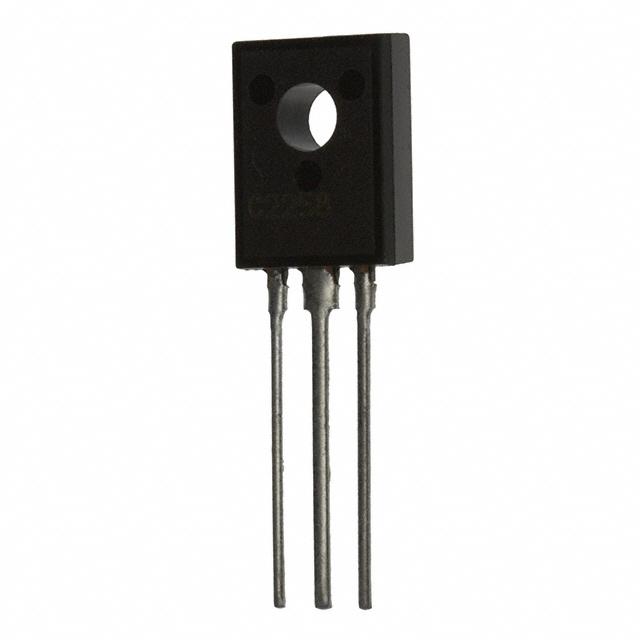

2SC18470Q Panasonic
Same model may have multiple batches, images only for reference.

2SC18470Q

Part No 2SC18470Q
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 40V 1.5A TO-126
Datasheet
2SC18470Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 1.5A
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 1V @ 200mA, 2A
Collector Cut-off Current(Max) 100μA
Typical Gain (hFE) (Min) 80 @ 1A, 5V
Maximum Power Dissipation 1.2W
Frequency - Transition 150MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-126B-A1
Win Source Part Number 1004338-2SC18470Q
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2SC18470Q CAD Model

Description

The 2SC18470Q is an obsolete (EOL) electronic component manufactured by Panasonic Electronic Components. However, the supply and demand status is sufficient.

  • Packaging: Bulk
  • Mounting: Through hole
  • Frequency-Transition: 150MHz
  • Transistor Polarity: NPN
  • Category: Discrete Semiconductor Products
  • Temperature Range: -150°C (TJ)
  • Case/Package: TO-126B-A1
  • Maximum Current Collector: 1.5A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 40V
  • Max Vce (sat): 1V @ 200mA, 2A
  • Collector Cut-off Current (max): 100μA
  • Typical Gain (hFE) (min): 80 @ 1A, 5V
  • Maximum Power Dissipation: 1.2W
