2SC3311AQA

Part No 2SC3311AQA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description Trans GP BJT NPN 50V 0.1A 300mW 3-Pin NS-B1 / TRANS NPN 50V 0.1A NS-B1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 300mV @ 10mA, 100mA
Collector Cut-off Current(Max) 1μA
Typical Gain (hFE) (Min) 160 @ 2mA, 10V
Maximum Power Dissipation 300mW
Frequency - Transition 150MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package NS-B1
Win Source Part Number 1004367-2SC3311AQA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 2SC3311AQ
Introduction Date October 08, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life

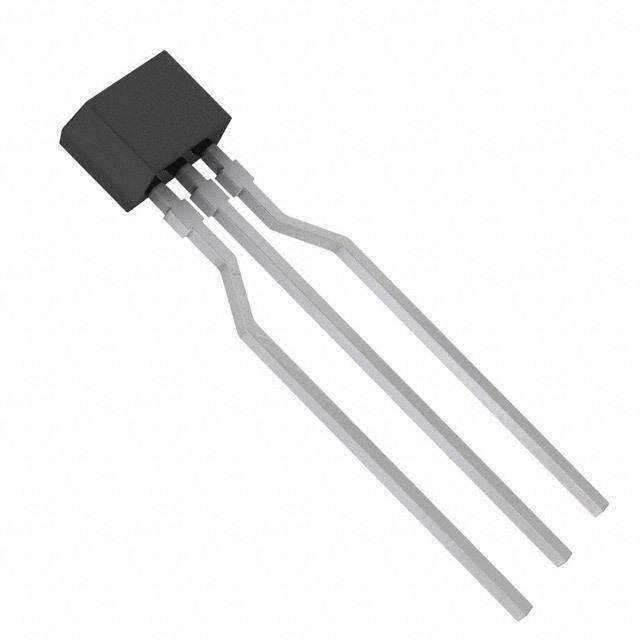

Ultra Librarian 3D Model Ultra Librarian 2SC3311AQA CAD Model

Description

The Panasonic Electronic Components 2SC3311AQA is a through-hole mounted NPN transistor with a maximum current collector of 100mA and a maximum collector-emitter breakdown voltage of 50V.

  • Mounting: Through-hole
  • Type: NPN Transistor
  • Maximum Current Collector: 100mA
  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Maximum Power Dissipation: 300mW
  • Typical Gain (hFE) (Min): 160 @ 2mA, 10V
  • Collector Cut-Off Current (Max): 1μA
  • Frequency Transition: 150MHz
  • Suitable For: Discrete semiconductor products
  • Operating Temperature Range: 150°C (TJ)
