The 2SD2242 is a silicon NPN epitaxial planar transistor manufactured by Panasonic, primarily designed for use in high-speed switching applications and driver circuits.

Applications:

• High-speed switching circuits
• Driver circuits for inductive loads
• Power amplifiers
• DC-DC converters
• Motor control applications

Features:

• NPN Silicon Epitaxial Planar Transistor
• High-Speed Switching Capability
• Low Collector Saturation Voltage
• High Collector Current Capability
• Excellent hFE Linearity

Benefits:

• Fast switching speeds enable efficient operation in high-frequency circuits.
• Low saturation voltage reduces power dissipation and improves efficiency.
• High collector current capability allows for driving larger loads.
• Stable performance over a wide range of operating conditions due to excellent hFE linearity.
• Suitable for a variety of applications requiring high-speed switching and amplification.

Additional Details:

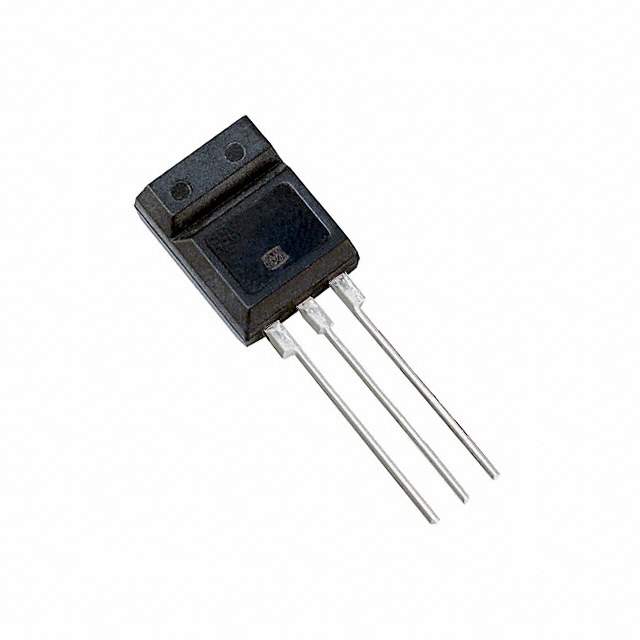

The 2SD2242 is housed in a standard through-hole package, facilitating easy mounting and heat dissipation. The transistor's key parameters include collector-emitter voltage (V<sub>CEO), collector current (I<sub>C), and power dissipation. It's characterized by its fast switching times and low saturation voltage, making it ideal for efficient switching applications. When designing with the 2SD2242, it's crucial to adhere to the manufacturer's specifications for voltage, current, and power to ensure reliable operation and prevent damage. Detailed electrical characteristics, such as the transition frequency (f<sub>T) and capacitance values, can be found in the Panasonic datasheet. Proper thermal management is essential to maintain performance and reliability, particularly at higher power levels. Consideration should be given to heat sinking and airflow to prevent overheating.
