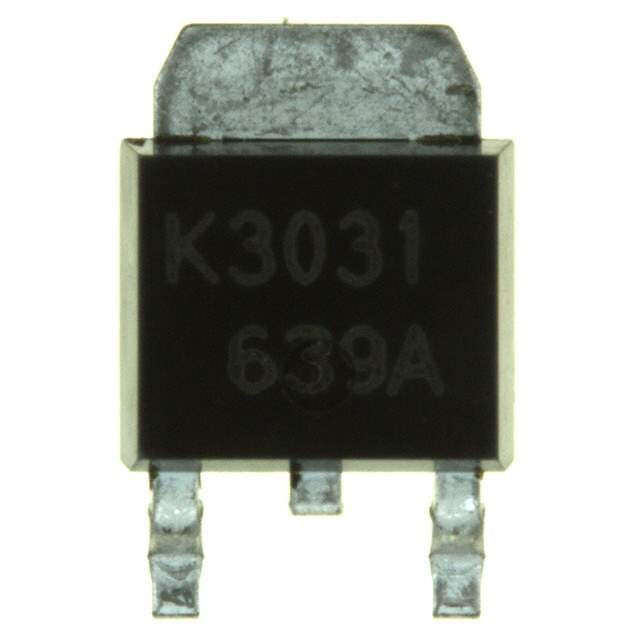

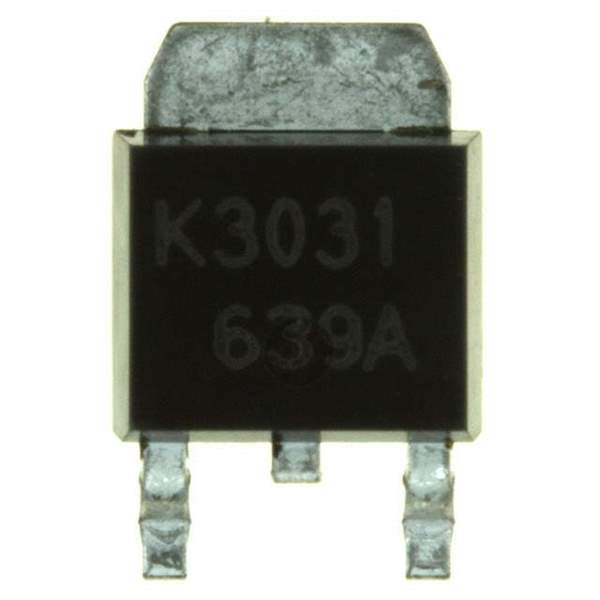

The 2SK3031 is an N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for RF (Radio Frequency) applications, manufactured by Panasonic. Its characteristics are optimized for high-frequency performance, making it suitable for RF amplification, switching, and mixing in radio communication and other high-frequency circuits. Its design focuses on minimizing losses and maximizing gain at higher frequencies.

Applications

• RF Amplifiers (Low Noise Amplifiers (LNAs), Power Amplifiers)
• RF Switches (Antenna switching, signal routing)
• Mixers in RF Receivers and Transmitters
• Oscillators
• VHF/UHF applications

Features

• Low noise figure for sensitive receiver applications
• High gain for efficient amplification
• Low input capacitance for better high-frequency response
• High breakdown voltage for robust operation
• Small surface-mount package for compact designs

Benefits

• Improved receiver sensitivity in wireless communication devices
• Efficient RF signal amplification
• Reduced power consumption in high-frequency circuits
• Simplified circuit design with integrated functionality
• Enhanced performance of wireless communication systems

Additional Details

For detailed specifications like drain-source voltage, gate-source voltage, drain current, power dissipation, noise figure, gain, and S-parameters, consult the official Panasonic datasheet for the 2SK3031. Proper biasing and impedance matching are crucial for achieving optimal RF performance. This MOSFET is a key component in various wireless communication applications, enabling efficient and reliable signal amplification and switching at radio frequencies.
