Same model may have multiple batches, images only for reference.

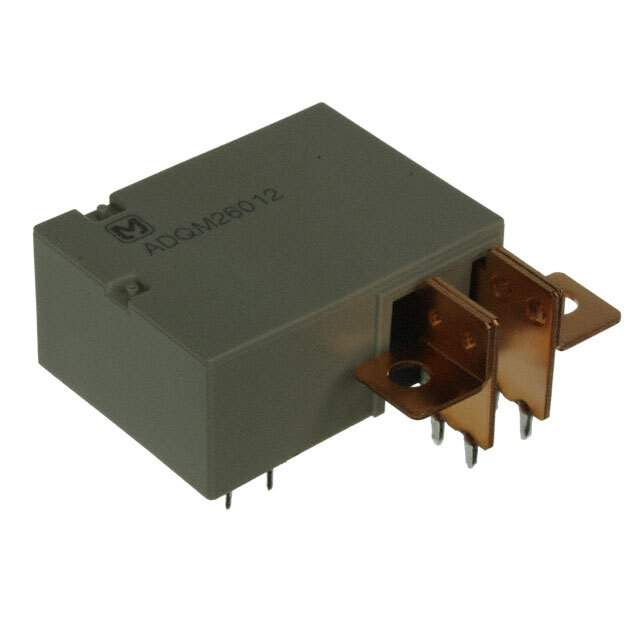

ADQM26012 Real Image
Same model may have multiple batches, images only for reference.

ADQM26012

Part No ADQM26012
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 60A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ADQM
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 60 A
Switching Voltage 250VAC - Max
Coil Current 83.3 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 9.6 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 144 Ohms
Base Product Number ADQM26
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-2599
Standard Package 20
Win Source Part Number 1086799-ADQM26012
Ultra Librarian 3D Model Ultra Librarian ADQM26012 CAD Model

Description

The ADQM26012 is a power relay manufactured by Panasonic Electric Works.

  • Series: ADQM
  • Termination Style: PC pin
  • Category: power relays over 2 amps
  • ECCN: EAR99
  • Package: tube
  • Units per Package: 20
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver alloy, cadmium-free
  • Coil Resistance: 144 ohms
  • Coil Current: 83.3 mA
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Relay Type: general purpose
  • Coil Type: latching, dual coil
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 60 A
  • Switching Voltage: 250VAC - Max
  • Seal Rating: sealed - flux protection
  • Mounting Type: through-hole
  • Operating Temperature: -40°C ~ 70°C
  • Must Operate Voltage: 9.6 VDC
  • HTSUS Code: 8536.41.0050
  • Product Status: obsolete
  • Alternative Parts: JTV1AS-PA-12V, JTV1AS-TMP-12V, T9AP1D52-12, T9AV1D12-12, ADQ23Q012, and 6-1393208-5
