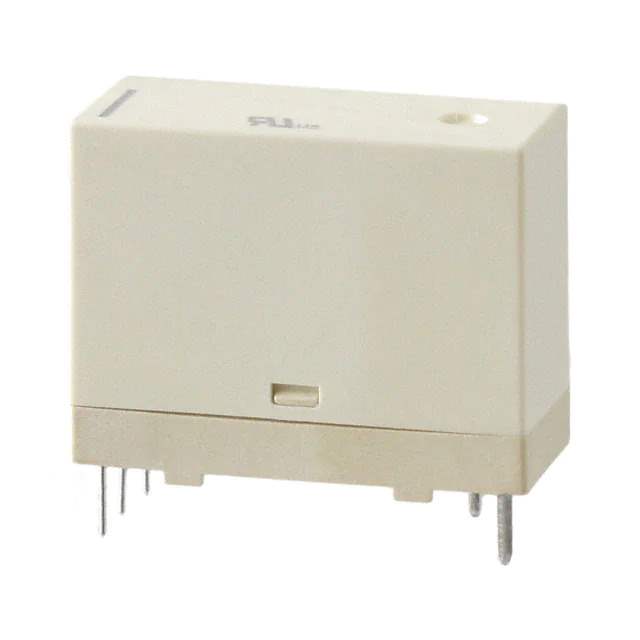

ADW1203W

Name: ADW1203W
Brand: Panasonic
SKU: 911136
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ADW1203W
Manufacturer	Panasonic
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPST 8A 3V / General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Power Relays, Over 2 Amps
Mfr	Panasonic
Series	DW
Package	Tray
Product Status	Active
Mounting Type	Through Hole
Coil Voltage	3VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	8 A
Switching Voltage	250VAC - Max
Coil Current	133 mA
Coil Type	Latching, Dual Coil
Termination Style	PC Pin
Seal Rating	Sealed - Flux Protection
Coil Insulation	Class F
Must Operate Voltage	2.4 VDC
Operate Time	15 ms
Release Time	15 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Coil Resistance	22.5 Ohms
Base Product Number	ADW1203
Standard Package	100 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	911136-ADW1203W
Ultra Librarian 3D Model	Ultra Librarian ADW1203W CAD Model

Alternative Products

Description

The Panasonic ADW1203W is a power relay from the DW series. It features a PC pin termination style and a SPST-NO (1 Form A) contact form.

Termination Style: PC Pin
Contact Form: SPST-NO (1 Form A)
Coil Voltage: 3VDC
Coil Resistance: 22.5 Ohms
Contact Rating: 8A
Switching Voltage: 250VAC
Seal Rating: Sealed and flux protection
Temperature Range: -40°C to 85°C
Mounting Type: Through-hole
Package: Tray
Coil Design: Latching, Dual Coil
Contact Material: Silver Tin Oxide
