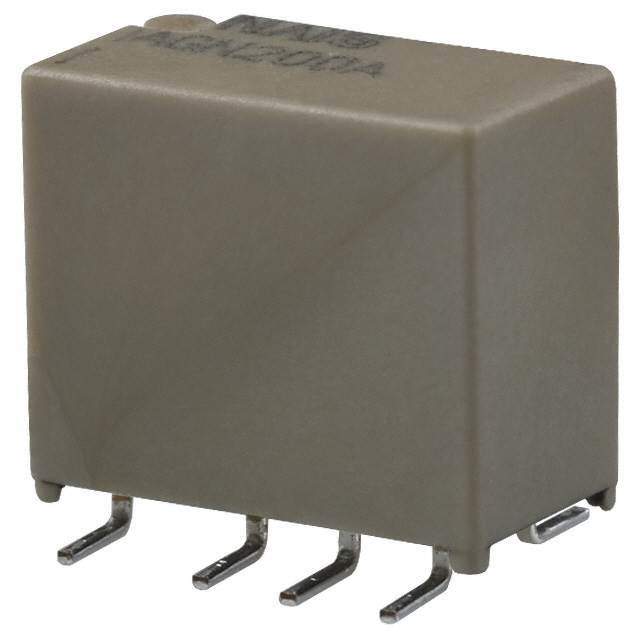

AGN200A4HZ Real Image
Same model may have multiple batches, images only for reference.

AGN200A4HZ

Part No AGN200A4HZ
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 4.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 31mA
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 3.38 VDC
Turn Off Voltage (Min) 0.45 VDC
Operate Time 4ms
Release Time 4ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 145 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 083456-AGN200A4HZ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AGN200A4HZ CAD Model

Description

AGN200A4HZ - Enhanced Contact Relay

The AGN200A4HZ relay combines compact design with enhanced contact reliability, making it highly efficient for sensitive applications.

    Applications:
  • Alarm Systems
  • Networking Devices
  • Instrumentation
  • Light Control Systems
    Features and Benefits:
  • Optimized for low signal operations.
  • Consistent electromagnetic performance.
  • Resistant to high humidity environments.
  • Excellent vibration resistance for stable operation.

The AGN200A4HZ ensures performance efficiency in challenging environments.
