Same model may have multiple batches, images only for reference.

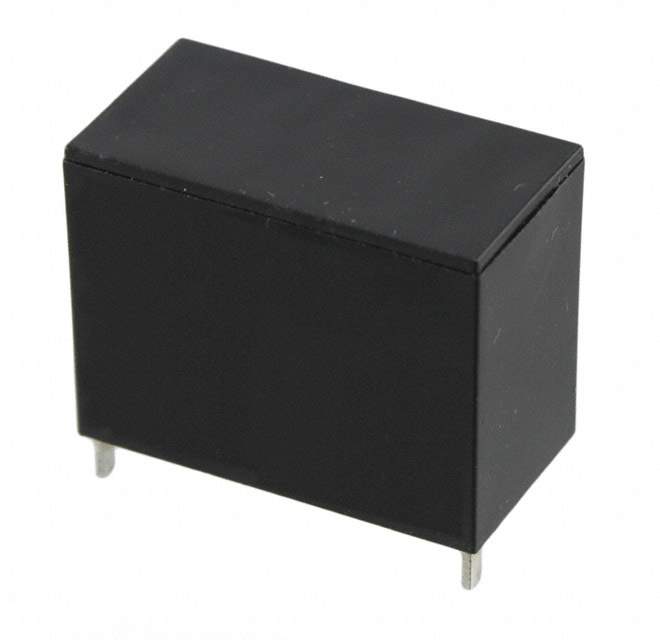

ALFG1PF12 Real Image
Same model may have multiple batches, images only for reference.

ALFG1PF12

Part No ALFG1PF12
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 25A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALFG
Package Bulk
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 25 A
Switching Voltage 250VAC - Max
Coil Current 117 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 103 Ohms
Base Product Number ALFG1P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-289-ND,255-2589,ALFG1PF12-ND
Standard Package 50
Win Source Part Number 1027810-ALFG1PF12
Ultra Librarian 3D Model Ultra Librarian ALFG1PF12 CAD Model

Description

The ALFG1PF12 relay is a SPST-NO (1 Form A) general-purpose relay from Panasonic Electric Works.

  • Manufacturer: Panasonic Electric Works
  • Part: ALFG1PF12
  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 250VAC - Max
  • Contact Rating (Current): 25 A
  • Coil Voltage: 12VDC
  • Coil Resistance: 103 Ohms
  • Coil Current: 117 mA
  • Operate Time: 20 ms
  • Release Time: 10 ms
  • Coil Type: Non-latching
  • Mounting: Through hole
  • Temperature Range: -40°C ~ 60°C
  • Seal Rating: -
  • Packaging: Bulk
  • Standard Package: 50
  • Cross-Reference: 1-1393230-3, T9AP1D52-12, T9AV1D12-12, JTV1AS-PA-12V, JTV1AS-TMP-12V, 2-1393209-0, and JTN1AS-PA-F-DC9VALF-G1PF12
