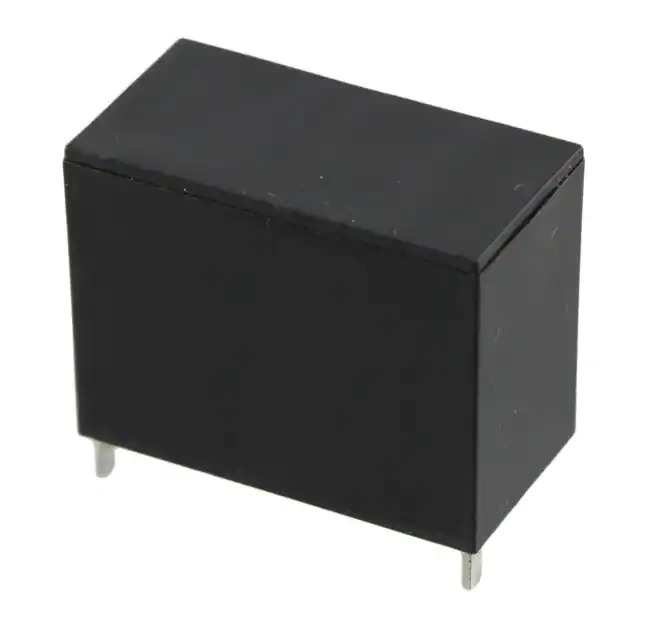

Same model may have multiple batches, images only for reference.
ALFG1PF121 Panasonic
Same model may have multiple batches, images only for reference.

ALFG1PF121

Part No ALFG1PF121
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 25A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALFG
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 25 A
Switching Voltage 250VAC - Max
Coil Current 117 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 103 Ohms
Base Product Number ALFG1P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373452-ALFG1PF121
Ultra Librarian 3D Model Ultra Librarian ALFG1PF121 CAD Model

Description

The 1373452-ALFG1PF121 is a power relay component manufactured by Panasonic Electric Works.

  • Series: ALFG
  • Package: Bulk
  • Coil Voltage: 12VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 25A
  • Switching Voltage: 250VAC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Coil Resistance: 103 Ohms
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 60°C
