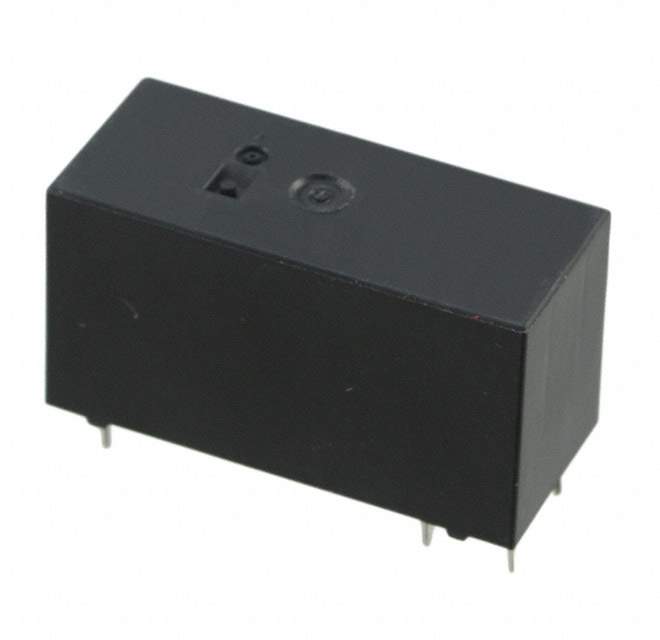

ALZ51B12W Real Image
Same model may have multiple batches, images only for reference.

ALZ51B12W

Part No ALZ51B12W
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description Low profile: 15.7mm height 1a/1c 16A power relay Household electrical appliances | RELAY GEN PURPOSE SPST 16A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 440VAC - Max
Coil Current 33.3mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class B
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15ms
Release Time 5ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1143367-ALZ51B12W
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ALZ51B12W CAD Model

Description

The Panasonic Electric Works ALZ51B12W is a high-quality general purpose relay designed for use in electronic circuits.

  • Popularity: Medium popularity
  • Supply and demand status: Balanced
  • Manufacturer homepage: www.panasonic.com/industrial/
  • Contact rating: 16A
  • Description: It is a reliable choice for a variety of applications.
