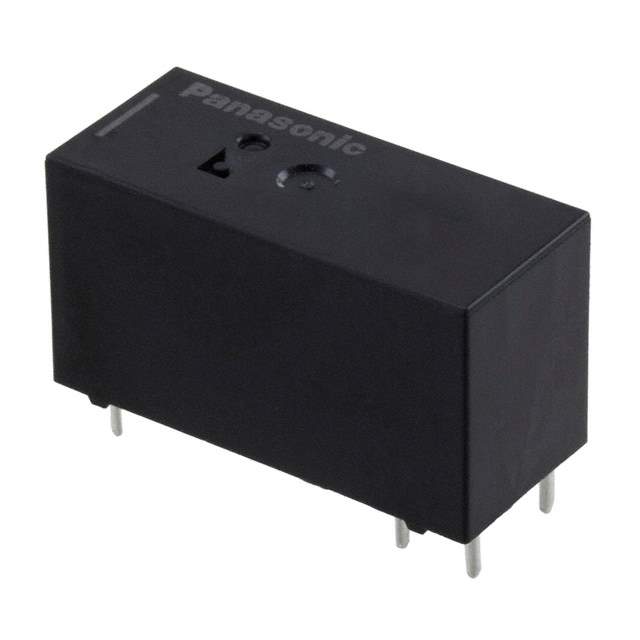

ALZ52B05 Real Image
Same model may have multiple batches, images only for reference.

ALZ52B05

Part No ALZ52B05
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALZ
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 63 Ohms
Base Product Number ALZ52B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names Q5451023,ALZ52B05-ND,255-4088-5,Q6883075
Standard Package 20
Win Source Part Number 1030328-ALZ52B05
Ultra Librarian 3D Model Ultra Librarian ALZ52B05 CAD Model

Description

The ALZ52B05 is a power relay that belongs to the relays category and is manufactured by Panasonic Electric Works.

  • Termination Style: PC Pin
  • Contact Form: SPST-NO
  • Coil Voltage: 5VDC
  • Coil Resistance: 63 Ohms
  • Supply and Demand Status: Limited
  • Standard Package: 20
  • Temperature Range: -40°C to 105°C
