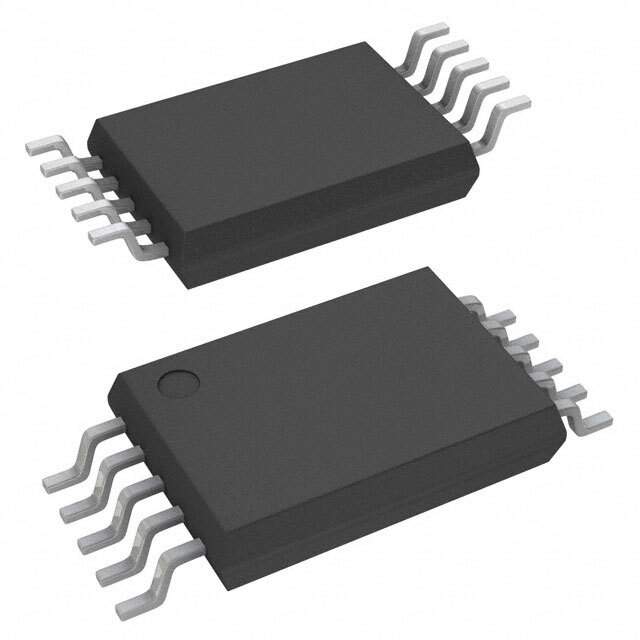

AN8016NSH-E1 Real Image
Same model may have multiple batches, images only for reference.

AN8016NSH-E1

Part No AN8016NSH-E1
Manufacturer Panasonic
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BOOST 10-SSOP
Datasheet
AN8016NSH-E1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Transistor Driver
Purpose Step-Up
Topology Boost
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 1.8 V to 14 V
Frequency - Switching 2kHz to 1MHz
Duty Cycle (Max) 80%
Synchronous Rectifier No
Clock Sync No
Control Features Enable, Soft Start
Temperature Range - Operating -30°C to 85°C (TA)
Case / Package 10-SSOP
Win Source Part Number 109490-AN8016NSH-E1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AN8016NSH-E1 CAD Model

Description

Product Overview

The AN8016NSH-E1 voltage regulator offers precise control and stability, making it suitable for demanding electronic applications. Its advanced features ensure reliable performance under varying conditions.

Features and Benefits

  • Enhanced Stability: Provides consistent output voltage.
  • Low Noise Output: Minimizes electronic interference for sensitive applications.
  • Over-current Protection: Safeguards against excessive current conditions.

Applications

  • Telecommunication Devices
  • Embedded Systems
  • Renewable Energy Solutions
  • Data Processing Units

Select the AN8016NSH-E1 for efficient and reliable system integration in your next project.
