Same model may have multiple batches, images only for reference.

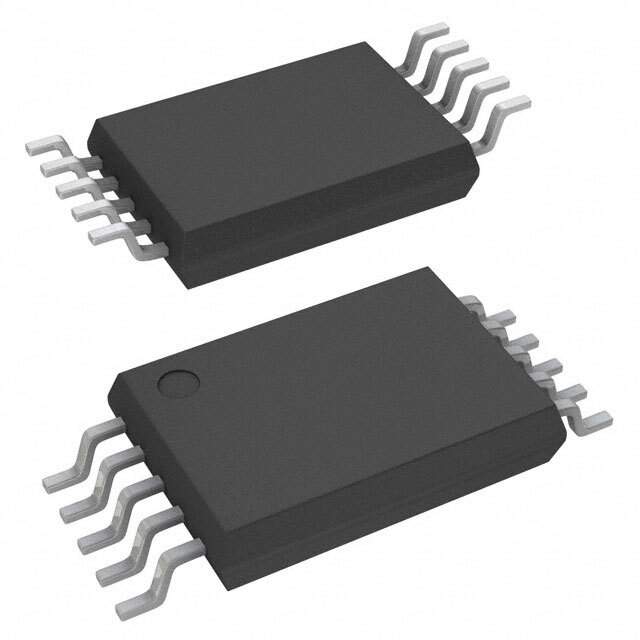

AN8016SHAE1V Real Image
Same model may have multiple batches, images only for reference.

AN8016SHAE1V

Part No AN8016SHAE1V
Manufacturer Panasonic
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BOOST 10-SSOP  /  Boost Regulator Positive Output Step-Up DC-DC Controller IC 10-SSOP
Datasheet
AN8016SHAE1V Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Controllers
Mfr Panasonic Electronic Components
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Output Type Transistor Driver
Function Step-Up
Output Configuration Positive
Topology Boost
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 1.8V ~ 14V
Frequency - Switching 2kHz ~ 1MHz
Duty Cycle (Max) 80%
Synchronous Rectifier No
Clock Sync No
Control Features Enable, Soft Start
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 10-FSOP (0.169", 4.30mm Width)
Supplier Device Package 10-SSOP
Base Product Number AN8016
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.31.0001
Other Names AN8016SHAE1VCT,AN8016SHAE1V-ND,AN8016SHAE1VTR
Standard Package 2,000
Win Source Part Number 1176422-AN8016SHAE1V
Ultra Librarian 3D Model Ultra Librarian AN8016SHAE1V CAD Model

Description

The Panasonic AN8016SHAE1V is an obsolete product that is no longer available for new designs.

  • Topology: Boost
  • Frequency: 2kHz ~ 1MHz
  • Duty Cycle (Max): 80%
  • Output Configuration: Positive
  • Features: Enable, Soft Start
  • Temperature Range: -30°C ~ 85°C
  • Package: 10-FSOP
  • Supplier Device Package: 10-SSOP
