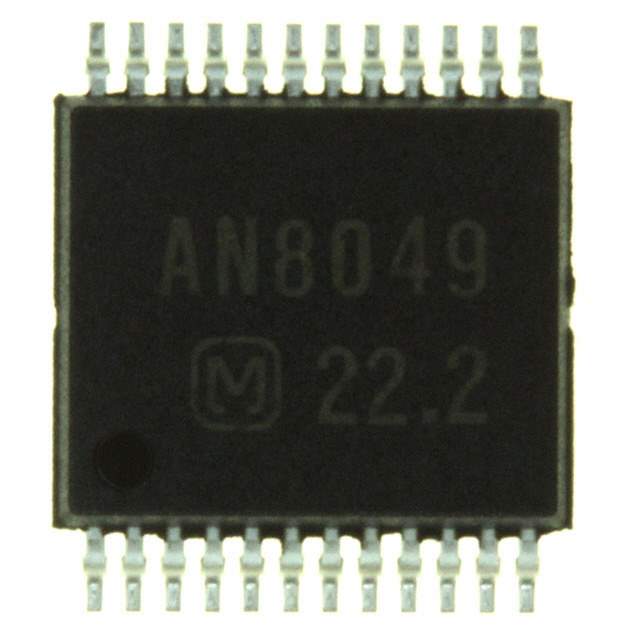

AN8049SH-E1 Real Image
Same model may have multiple batches, images only for reference.

AN8049SH-E1

Part No AN8049SH-E1
Manufacturer Panasonic
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK/BOOST 24SSOP
Datasheet
AN8049SH-E1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Transistor Driver
Purpose Step-Up/Step-Down
Topology Buck, Boost
Number of Outputs 3
Output Phases 1
Supply Voltage - Operating 1.8 V to 14 V
Frequency - Switching 20kHz to 1MHz
Duty Cycle (Max) 86%
Synchronous Rectifier No
Clock Sync No
Control Features Enable, Soft Start
Temperature Range - Operating -30°C to 85°C (TA)
Case / Package 24-SSOP
Win Source Part Number 009712-AN8049SH-E1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AN8049SH-E1 CAD Model

Description

AN8049SH-E1 PWM Controller

The AN8049SH-E1 is a high-performance PWM controller designed for efficient DC-DC converters. Its compact design ensures optimal performance for various power supply applications.

  • Applications:
    • DC-DC Power Supplies
    • Battery Chargers
    • Telecommunications Equipment
  • Features and Benefits:
    • Wide Operating Voltage Range
    • High Efficiency with Low Standby Power
    • Built-in Overvoltage Protection
    • Synchronous Rectification for Reduced Losses
