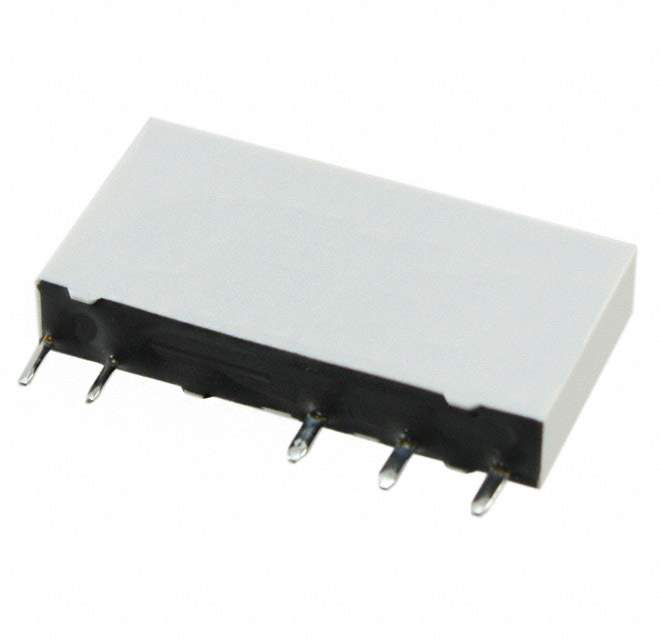

APF30206 Real Image1 APF30206 Real Image2
Same model may have multiple batches, images only for reference.
APF30206 Real Image1 APF30206 Real Image2
APF30206 Real Image1 APF30206 Real Image2
Same model may have multiple batches, images only for reference.

APF30206

Part No APF30206
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 6V / General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic
Series APF
Package Tube
Mounting Type Through Hole
Coil Voltage 6VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 28.3 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Coil Insulation -
Must Operate Voltage 4.2 VDC
Must Release Voltage 0.3 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 212 Ohms
Base Product Number APF302
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Standard Package 1,000 pcs
Win Source Part Number 1381424-APF30206
Ultra Librarian 3D Model Ultra Librarian APF30206 CAD Model

Description

The Panasonic APF30206 Power Relay is a high-quality component designed for various applications.

  • Contact Rating: 6A
  • Contact Form: SPDT
  • Coil Voltage: 6VDC
  • Mounting Type: Through Hole
